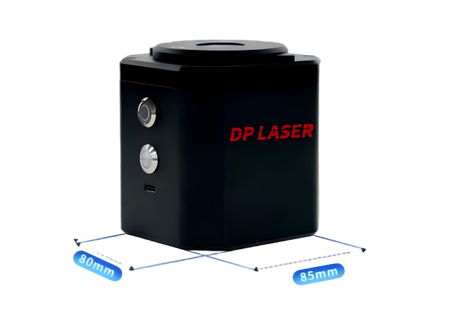

DP LASER Portable Coaxial Alignment Device

DP LASER Portable Coaxial Alignment Device

Concise Product Copy

Product Positioning

The DP LASER Portable Coaxial Alignment Device is designed around three fully automated core functions:
automatic nozzle centering, auto focus adjustment, and automatic coaxial alignment.

It is specifically engineered to eliminate the limitations of traditional manual alignment in the laser cutting industry, enabling a shift toward high-precision, automated calibration workflows.

Industry Pain Points & Our Solution

Traditional manual alignment relies heavily on operator experience, is time-consuming, lacks precision, and suffers from poor repeatability—making it unsuitable for modern automated production lines.

This device integrates a high-precision vision module with intelligent algorithms, working in coordination with an auto-adjustable coaxial cutting head to achieve:

·Fully automated alignment

·High accuracy and consistency

·Significant efficiency improvement

Equipped with Wi-Fi connectivity and a built-in long-life battery, the system supports synchronized control via mobile APP and control interface.

The entire calibration process is real-time visualized, intuitive, and requires no prior experience, making coaxial alignment faster, easier, and more reliable.

Application Scope

Compatible with all cutting machines equipped with DP LASER’s proprietary CNC control system.

I. Three Core Functions

·Automatic Nozzle Centering
One-click operation automatically detects and aligns the nozzle to the visual center.

·Auto Focus Adjustment
The vision system automatically adjusts to the optimal focal plane for precise recognition.

·Automatic Coaxial Alignment
Built-in motorized adjustment ensures the red beam center is perfectly aligned with the nozzle orifice center.

II. Four Key Advantages

·Micron-Level Precision
Clear red beam imaging even under complex conditions.
Combines high-resolution vision sensing + intelligent algorithms for ultra-precise alignment.

·Wireless & Cross-Platform Control
Wi-Fi communication enables seamless operation via PC and mobile APP, ensuring flexible and visualized control.

·Industrial-Grade Protection
Equipped with a rotary protective housing, resistant to impact, oil contamination, and dust—ideal for harsh workshop environments.

·Compact & Portable Design
Integrated lightweight structure with built-in battery, no external wiring required, adaptable across multiple machine models.

IV. Core Value

This solution replaces outdated manual calibration methods by:

·Reducing operator dependency

·Improving cutting accuracy and consistency

·Enhancing machine setup efficiency

·Ensuring stable processing quality

It empowers manufacturers to upgrade toward automation and intelligent production, delivering a high-efficiency, high-precision, and user-friendly one-stop coaxial alignment solution.
