Application industries:
steel structure, elevator manufacturing, construction machinery, mining engineering, machinery industry, pipeline industry, auto parts, fitness equipment, hardware products, hardware furniture, school equipment and other industries.
 |  |  |

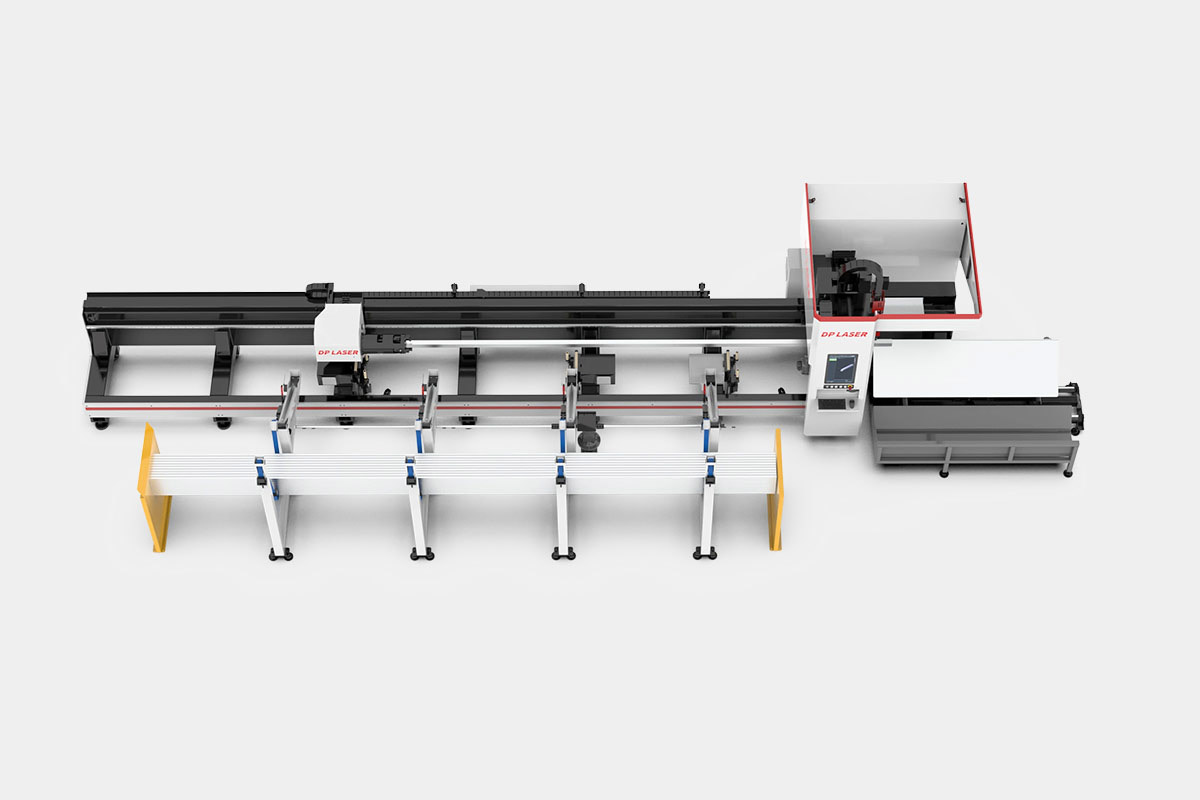

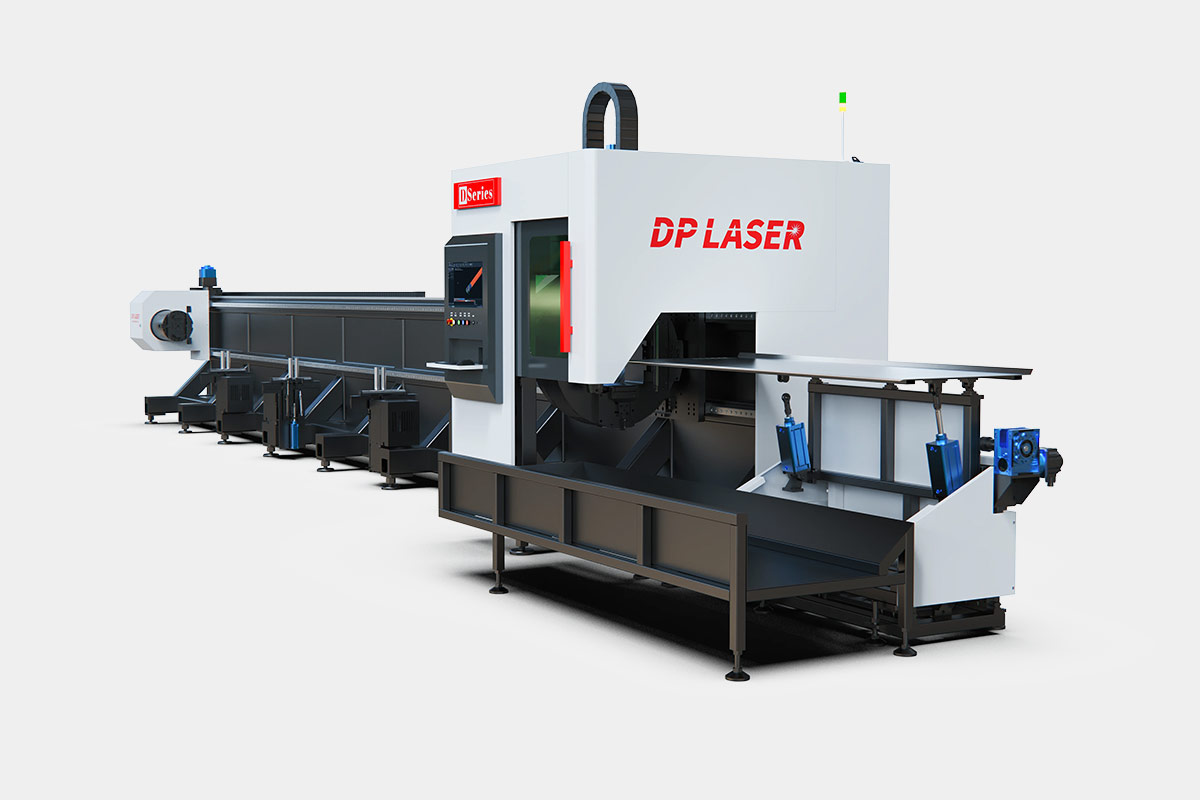

DP LASER Customized three-chuck fiber laser tube cutting machine: diameter φ20-φ360mm, X-axis travel 10m, accuracy ±0.03mm.
1. Processing Range
Round tubes: Φ20–Φ360 mm
Square tubes: 20×20–360×360 mm
I-beam/channel steel: Φ20–Φ360 mm；20×20–360×360 mm；
2. Axes & Speed
X-axis travel: 10,000 mm
Y-axis: 650 mm | Z-axis: 350 mm
W1/W2/W3 axes: Infinite rotation
Max speed: XY-axis 100 m/min | W-axis 80 rpm
3. Accuracy
Positioning accuracy: 0.02 mm/m
Repeat positioning accuracy: ±0.03 mm
4.Chuck Performance
Front chuck : Single-jaw stroke 180 mm | Thrust 800 Kgf
Rear chuck : Single-jaw stroke 60 mm | Thrust 1000 Kgf
5. Cutting Specs
Standard cutting length: ≤9000 mm
Max single-tube weight: 1000 Kg (135 Kg/m weight limit)
