Traditional tube processing relies on sawing, drilling, deburring, and milling. This disjointed sequence creates massive production bottlenecks. You waste hours moving parts between distinct workstations. It directly inflates your labor costs per part and increases the likelihood of human error. Scrap rates often climb as materials shift between different clamping setups.
Buying a Tube Laser Cutting Machine solves this fundamental business problem. It consolidates a sluggish four-step workflow into a single, non-contact operation. You stop buying new hand tools and start automating your primary fabrication cycle.
Modern fiber tube lasers maximize material yield and deliver weld-ready tolerances right off the machine. They dramatically reduce labor costs per part. However, you only achieve these bottom-line promises if your facility chooses the correct configuration. In this guide, we explore how to evaluate machine capabilities, overcome real-world processing defects, and match hardware to your exact production demands.
Workflow Consolidation: Replaces saws, drills, and mills; delivers burr-free, weld-ready edges in one pass.
Material Optimization: Advanced 3-chuck systems enable "zero-tail" cutting, saving 5–10% in raw material costs.
Real-World Precision: Compensates for natural tube twist and bowing, maintaining strict tolerances (up to ±0.25mm) through contact probes or visual sensors.
Scalability: Configurations range from 1.5kW machines for lightweight furniture to 6kW+ 4-chuck behemoths for structural steel and shipbuilding.

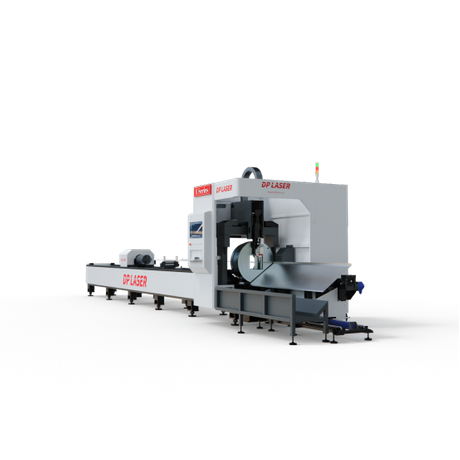

A modern tube laser cutting machine operates through a highly orchestrated synergy between three core subsystems. First, the fiber laser source generates a high-energy beam. This beam travels at a 1.06μm wavelength. This specific wavelength offers incredibly high energy density and achieves a wall-plug efficiency of roughly 30%. Second, the movement system relies on CNC-controlled rotary chucks. These chucks grip and spin the material flawlessly. Third, the cutting head focuses the raw laser beam down to a microscopic point on the tube surface.

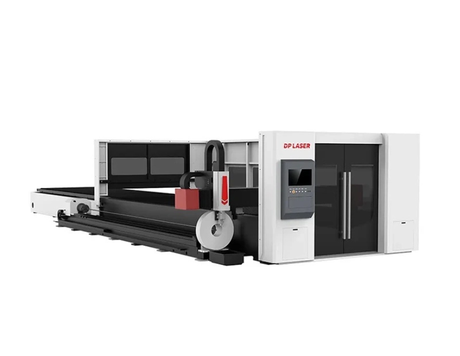

A common buyer pitfall involves choosing cheap "flatbed combo" machines to handle volume production. These machines attach a basic rotary axis to the side of a standard flat sheet laser. They routinely fail in high-volume industrial environments. Dedicated machines provide entirely different engineering standards.
Raw Material Lengths: Dedicated machines easily handle 20 to 24-foot raw tube lengths. Combos are heavily restricted by their flatbed dimensions, usually maxing out under 10 feet.
Automated Feeding: Dedicated units support automated bundle loading. Operators drop a bundle into a magazine, and the machine feeds itself. Combos require manual, piece-by-piece loading.
Advanced Beveling: True tube lasers execute complex 3D beveling. Combos generally perform simple 2D perpendicular cuts.
A dedicated machine does much more than slice pipes to length. It fundamentally alters part design.
High-Speed Hole Piercing: Eliminates the need for drill presses. It punches precise holes in milliseconds.
Intricate Slotting: Creates interlocking tabs and slots. This allows parts to self-fixture before welding.
3D Intersection Cuts: Executes perfect saddle cuts. This eliminates manual coping and grinding when joining round pipes at complex angles.
Buyers must break down hardware capabilities by realistic industrial applications. You need to self-identify your production tier before speaking to vendors. Overbuying wastes capital. Underbuying cripples your production speed. Below is a configuration chart to guide your evaluation.
Production Scenario | Ideal Power & Setup | Target Industries | Primary Engineering Focus |
|---|---|---|---|
A: High-Speed, Thin-Wall | 1.5kW – 3kW | 2 or 3 Chucks | Furniture, Medical, Fitness | High machine dynamics, rapid load/unload, small footprint. |
B: The Industrial Sweet Spot | 3kW – 6kW | 3 Chucks | Automotive Parts, Gen-Fab | Zero-tail cutting (waste ≤30mm), 3D beveling (±45° tilt). |
C: Heavy-Duty & Structural | 6kW+ | 4 Heavy-Duty Chucks | Shipbuilding, Construction | Full-length heavy profile support, sag prevention. |
If you manufacture lightweight furniture or medical equipment, your focus is speed. Tubes are generally thin-walled and easy to sever. An ideal setup uses 1.5kW to 3kW of power. Standard 2-chuck or 3-chuck systems work perfectly here. Your primary goal is high machine dynamics. You want rapid axis acceleration, fast loading mechanisms, and a compact factory footprint.
General fabrication and automotive parts demand versatility. Here, the 3kW to 6kW power range dominates the market. You must use a 3-chuck system. The third chuck enables "zero-tail" capability. It supports the material so closely to the cutting head that waste drops to 30mm or even zero. This saves thousands of dollars in raw material annually. Furthermore, 3D beveling capabilities (offering up to ±45° tilt) provide direct weld preparation. This ensures deeper weld penetration and eliminates downstream grinding.
Shipbuilding, agriculture, and heavy construction involve massive profiles. You will need 6kW+ power sources. You also need a rugged 4-chuck system. Heavy tubes suffer from gravity-induced sagging. A 4-chuck machine provides full-length support for oversized or irregularly shaped profiles. This rigid clamping prevents sagging and maintains perfect concentricity over a 24-foot span.
Factory-floor realities are harsh. Raw materials arrive from the mill in imperfect conditions. Tubes are rarely perfectly straight. They arrive covered in cutting oil or scale. High-end equipment anticipates these flaws and compensates for them dynamically.
Steel profiles naturally bow and twist during the extrusion and cooling process. If a machine assumes a tube is perfectly straight, the cut geometry will shift wildly off-center. Traditional machines use contact probes. These probes physically touch the tube surfaces. They take 5 to 7 seconds to map deformities before cutting. Modern machines use visual camera systems instead. These cameras scan the profile instantly. They reduce mapping time to roughly 0.5 seconds while holding strict ±0.25mm tolerances. This keeps your production moving without sacrificing precision.
When you cut flat sheet metal, the laser blasts right through into an open bed. When you cut a tube, the laser cuts through the top wall and travels straight toward the bottom wall. This creates a massive physical risk. More power is not always better. Standard tube lasers are often capped around 5kW. If you use excessive wattage, the beam will easily burn a hole through the back wall of your pipe. Engineers must carefully balance focal depth, gas pressure, and laser wattage to sever the top layer without scorching the opposite side.
Welded tubes have an internal seam. Cutting across a thick weld seam requires different parameters than cutting the standard wall. Smart optical sensors look for these seams. Even if oil covers the exterior, advanced cameras can detect the internal ridge. The CNC dynamically adjusts cutting parameters as the beam crosses the seam. This intelligent heat management prevents edge discoloration. It also minimizes the heat-affected zone (HAZ), which keeps the metal structurally sound for downstream bending or welding.
Many buyers obsess over laser hardware. They analyze servo motors and laser diodes. However, hardware ceilings are strictly dictated by software floors. A poorly programmed machine will waste material and sit idle. Advanced Computer-Aided Manufacturing (CAM) and nesting software actively drive your operational returns.
Nesting software acts as the brain of your production run. It fits multiple part designs onto a single raw length of pipe. Advanced algorithms execute "shared-edge cutting." If two brackets have a straight edge, the software places them exactly side-by-side. The laser fires once down the middle, separating both parts simultaneously. This slashes piercing time. It reduces gas consumption. Most importantly, it maximizes material utilization by eliminating webbing scrap between parts.
Software bridges the gap between digital perfection and physical reality. You might design a perfectly square tube in CAD. Your actual batch from the steel supplier might have slightly rounded corners or slightly thicker walls. Advanced CAM software translates CAD geometry into CAM reality. It prompts operators to input actual batch variances. It then automatically recalibrates the cutting paths. The tabs and slots will still fit together perfectly, even if the raw pipe dimensions deviate slightly from the mill.
Procuring capital equipment requires an objective look at financial and operational boundaries. You must look beyond the marketing brochures and evaluate the objective constraints of laser technology.
Industrial machines span a massive pricing spectrum. Entry-level, barebones machines might start around $10,000. These are strictly for light-duty, intermittent use. Fully automated, high-power machines from premium EU or US brands easily exceed $500,000. To justify this capital expenditure, you must compare it to your current cost-per-hour. Outsourced job-shop costs generally run between $50 and $500 per hour depending on part complexity. Bringing this capability in-house slashes your lead times and captures that margin.
Processing Method | Estimated Cost Profile | Primary Advantage | Primary Disadvantage |
|---|---|---|---|
Outsourced Job Shop | $50 – $500 / Hour | Zero capital expenditure. | Loss of margin, long lead times. |
Entry-Level Machine | $10,000 – $50,000 Capex | Low barrier to entry. | Manual loading, high labor input. |
Premium Automated Setup | $200,000 – $500,000+ Capex | Lowest cost per part at high volume. | Significant upfront cash requirement. |
Even the best lasers face physical constraints. You must understand what the machine cannot do.
Physical Constraints: Chuck diameter strictly dictates your maximum tube size. If you buy a 6-inch chuck, you can never process an 8-inch pipe. Always size your chucks for future growth.
Reflective Materials: Modern fiber lasers process brass and copper far better than legacy CO2 machines. However, cutting extreme thicknesses of high-reflection materials remains challenging. High-intensity back-reflections can bounce up the cutting head and damage sensitive diode modules. You must verify reflection-protection mechanisms with the vendor.
Do not buy a machine based purely on "max wattage." Instead, evaluate vendors based on operational uptime. Look for a strong local Service Level Agreement (SLA). Check their spare parts availability. Cutting head consumables, like protective windows and nozzles, need frequent replacement. If your vendor cannot ship parts overnight, your entire line stops. Finally, demand comprehensive software training. Your operators must understand the nesting algorithms to unlock the machine's true value.
A tube laser cutting machine serves as a high-yield, bottleneck-breaking asset. It is designed specifically for facilities processing moderate to high volumes of tubular profiles. By consolidating sawing, drilling, and milling into one step, you drastically reduce manual labor and material scrap. You gain the ability to produce self-fixturing parts that speed up downstream welding.
Your next step requires data collection. Audit your current scrap rates. Tally your manual processing hours for a typical production month. Calculate your baseline operational costs. Once you have those hard numbers, contact reputable manufacturers. Request custom test cuts on your specific profiles, and ask them to run ROI models based on your exact factory data.
A: Yes. Modern machines effortlessly cut square, rectangular, and elliptical tubes. They also process open profiles like H-beams, angle iron, and custom extruded shapes. The only requirement is that the machine's chuck and CAM software support the specific geometry.
A: A 2-chuck machine requires a longer holding area, leaving a longer tail piece as waste. A 3-chuck system moves the material dynamically so the laser cuts between the chucks. This enables zero-tail or zero-waste production, drastically improving material yield.
A: Thickness limits depend entirely on the laser's wattage. Standard industrial setups can cleanly sever carbon steel walls up to 1-inch (25.4mm) thick. Kerf sizes remain exceptionally tight, usually between 0.2mm and 0.5mm. However, proper heat management becomes critical at maximum thicknesses.
A: You only need bevel cutting if your downstream process requires complex tube-to-tube welding. A 3D bevel head cuts precise V-grooves or Y-grooves directly into the pipe. This allows deeper weld penetration without operators grinding the edges by hand.
