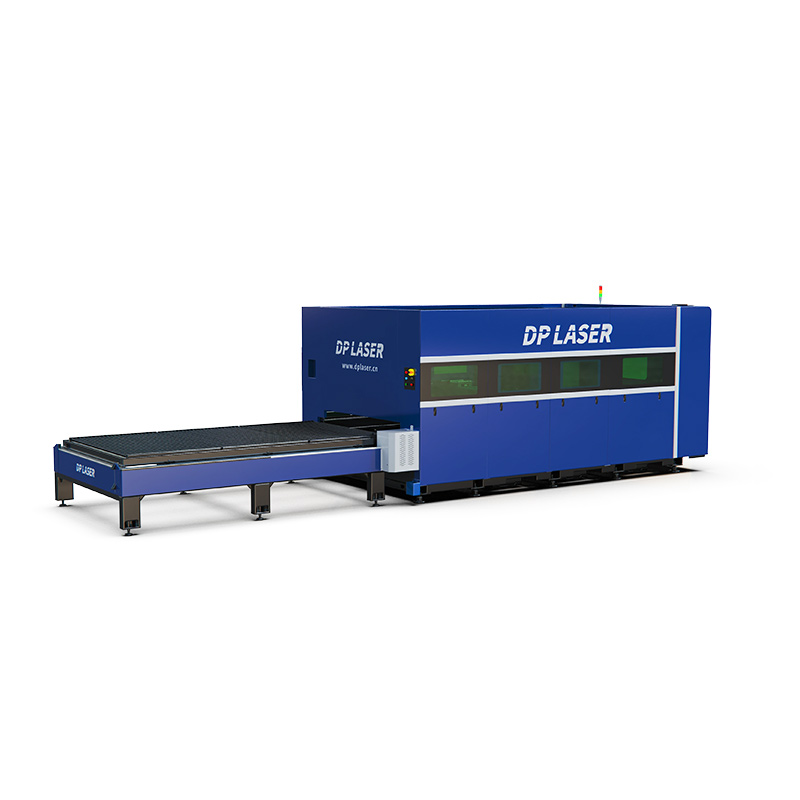

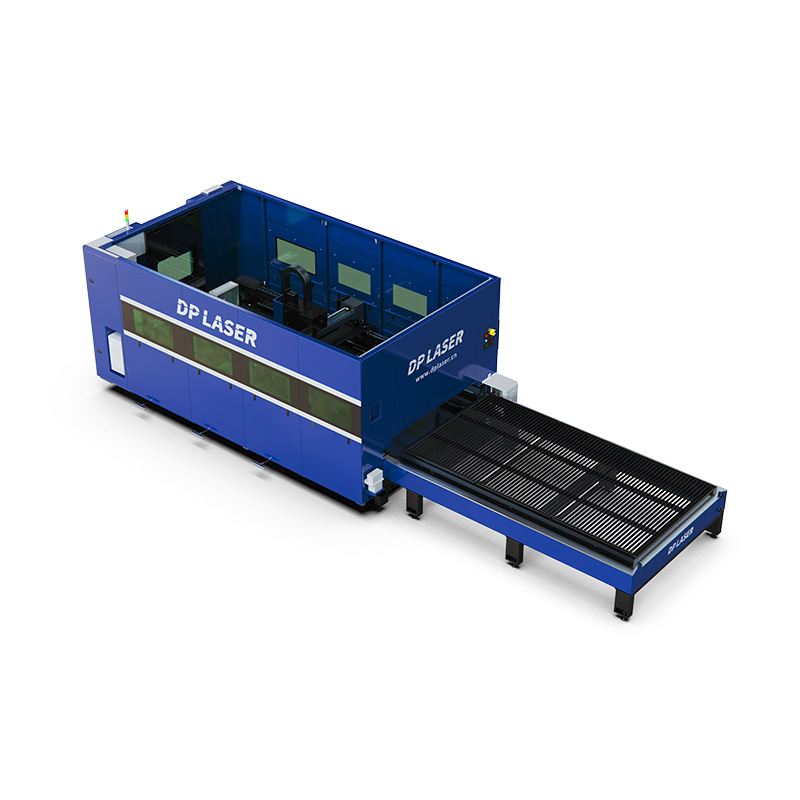

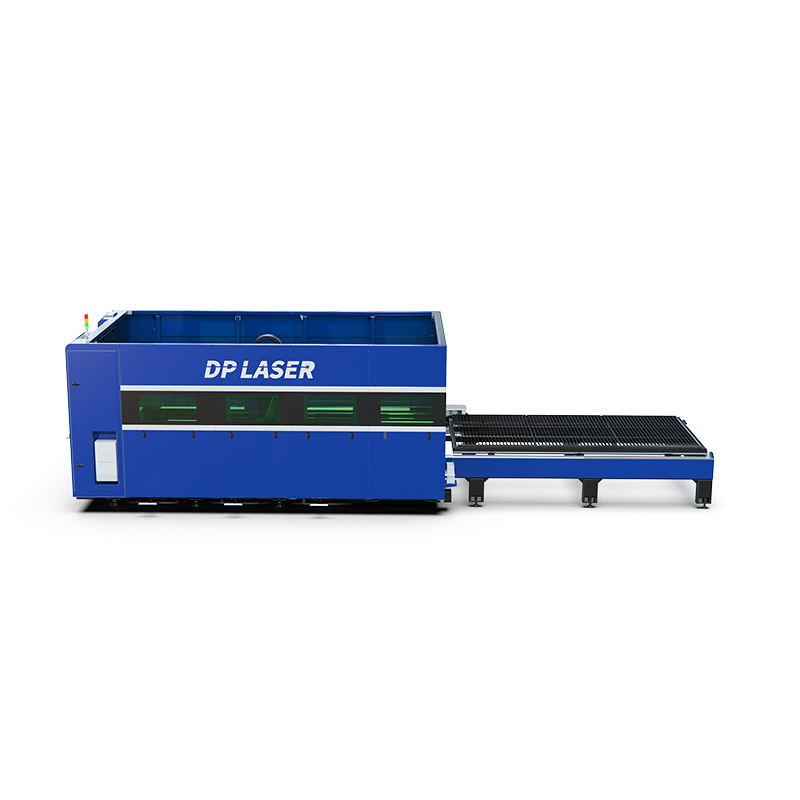

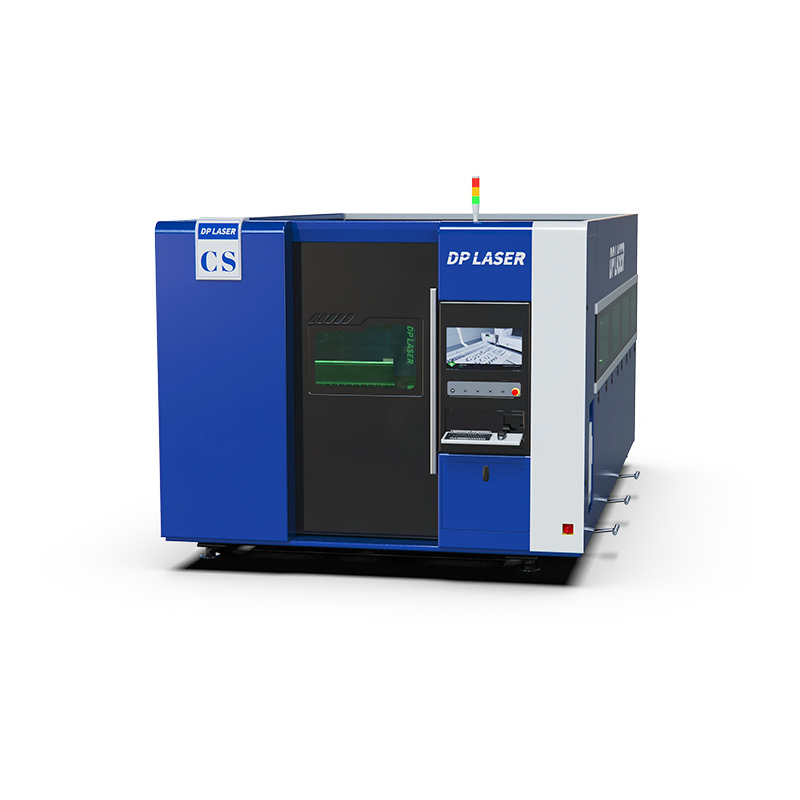

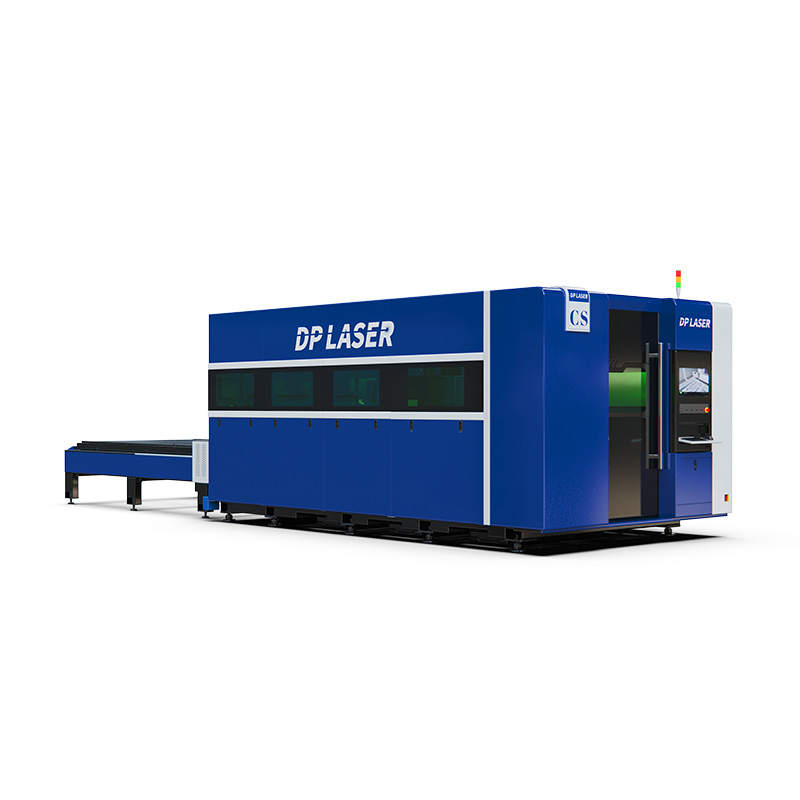

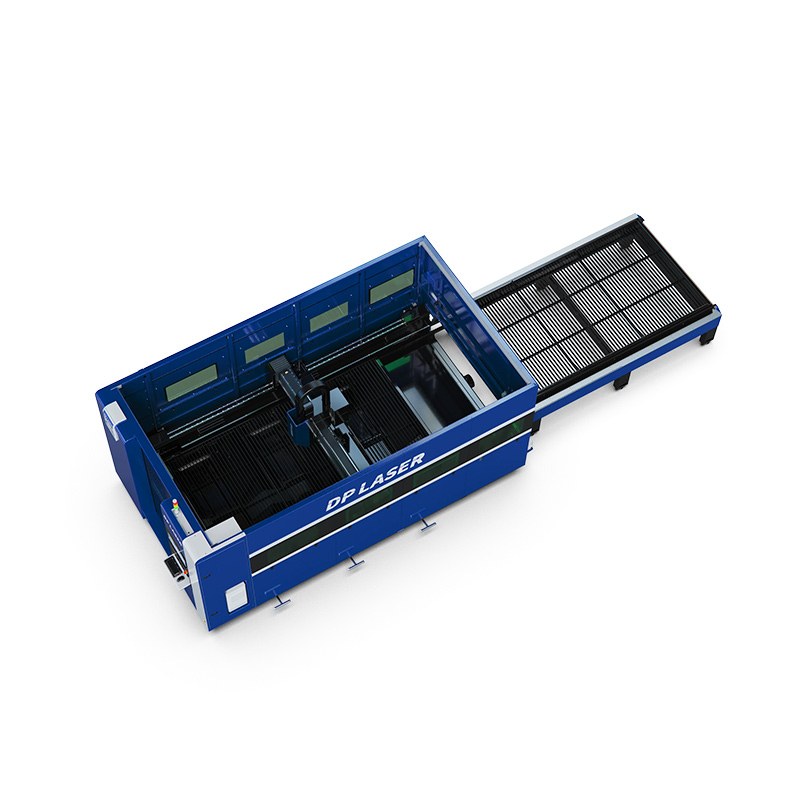

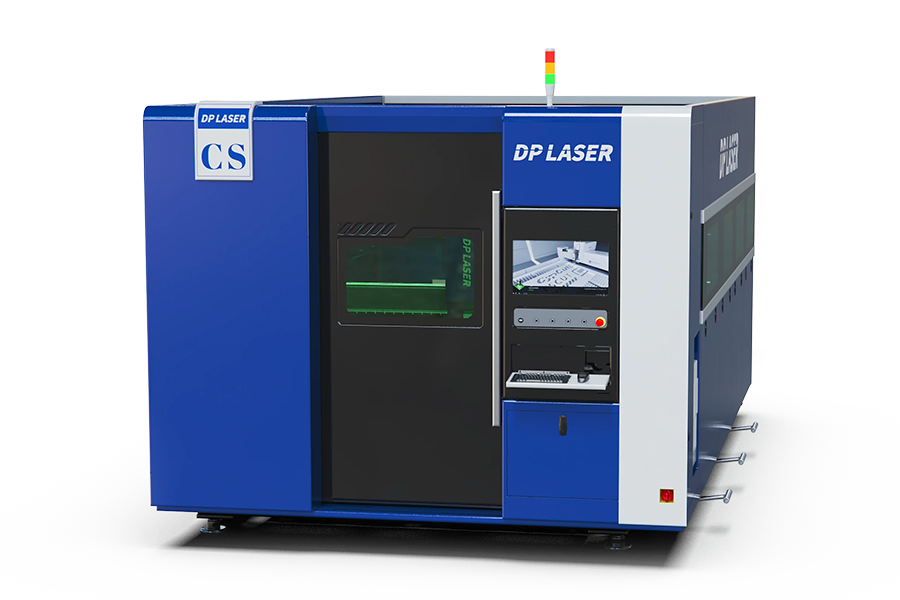

The CS-Series Ultra-High Speed Fiber Laser Cutting Machine stands as DP LASER’s flagship engineering breakthrough, redefining efficiency in precision cutting. Designed with optimized path planning, this machine eliminates redundant toolpaths to boost processing speed by 17%, while its extruded aluminum beam achieves 28% weight reduction and 15% torsional rigidity enhancement—delivering superior dynamic performance for complex manufacturing tasks. In real-world validation with 10 sheets of 1mm stainless steel (complex geometries), it cuts total operational costs by 30% through minimized time, labor, and energy consumption. Integrated with a proprietary expert cutting database and core technologies like zero-second piercing and clean-edge execution, it becomes an indispensable asset for high-demand manufacturing sectors.
Leveraging bus-system precision, the machine enables laser pre-ignition during non-cutting motion. This rapid high-position piercing technology slashes piercing time significantly, directly boosting overall cutting and operational efficiency by 30%. It excels in processing high-volume batches, reducing bottlenecks in mass production.
The cast aluminum beam features lighter mass, higher density, and superior rigidity—combining exceptional stability with dominant dynamic performance. Even at maximum positioning speeds of 110m/min, it maintains consistent precision, avoiding vibrations that compromise cutting quality.
Immune to heat generated by the cutting plate, the monocoque thermal-isolated bed eliminates structural deformation risks during high-power operations. This ensures long-term accuracy, even in extended, high-intensity production runs, reducing rework and material waste.
Optimized toolpath planning prevents re-crossing of cut areas, accelerating the processing of complex contours by 17%. For intricate parts requiring precise contouring, this technology shortens cycle times without sacrificing precision, enhancing throughput.
Model | Cutting range | Laser output power | Maximum acceleration | Minimum slit width | X/Ypositioning accuracy | Maximum positioning speed | |
DPE-CS3015 | 3000x1500mm | 3000W | 2G | 0.15mm | ±0.03mm | 110m/min | |
DPE-CS3015F | 3000×1500mm | 3000W | 2G | 0.15mm | ±0.03mm | 110m/min | |
DPE-CS3015D | 3000×1500mm | 3000W | 2G | 0.15mm | ±0.03mm | 110m/min | |
Model | Machin size | Machine weight | Total weight | ||||
DPE-CS3015 | 4831*2225*948mm | 1605kg | 2770kg | ||||
DPE-CS3015F | 8324*2597*2008mm | 1960kg | 4500kg | ||||
DPE-CS3015D | 8217*2757*2319mm | 1960kg | 5600kg | ||||
The CS-Series Ultra-High Speed Fiber Laser Cutting Machine serves a wide range of industries, including railway transportation, automotive manufacturing, construction machinery, agricultural/forestry machinery, electrical manufacturing, elevator production, home appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchenware & bathroom fixtures, decorative advertising, and laser processing services. It is ideal for cutting stainless steel, carbon steel, and other metals with precision and speed.
We offer laser engraving on equipment shells, supporting Pantone color matching and vector LOGO etching. This allows brands to align the machine with their corporate identity for a professional look.
Tailored process modules are developed for specific industry needs—simply provide material type, thickness range, and processing speed requirements. Whether for thin-sheet precision cutting or medium-thick plate processing, we optimize the machine for your workflow.
Multi-language UI (German, Spanish, etc.) and PLC reprogramming are available, ensuring seamless integration with your existing production systems and accommodating global team operations.
Lifetime complimentary online technical training is provided. After installation and commissioning, your technicians can attend on-site sessions at our domestic training center until operational proficiency is achieved. Core modules include laser source fundamentals, electrical & CNC systems, laser processing techniques, and safety protocols.
Our Nantong Base (Jiangsu) spans 90 acres, specializing in high-power laser cutters (6kW–30kW) and automated production line integration. The Dongguan Base (Guangdong) is a 40,000㎡ modern factory focused on export-grade precision equipment—virtual factory tours are available within 72 hours.
With 13 years of experience and 25,000+ units delivered, we maintain stable production: 80+ laser cutters monthly (expandable by 30% with 25-day lead time). Standard models ship in 15–20 working days; custom orders take 25–30 days (30% faster than industry average). Global logistics include 25-day sea freight, customs clearance, and on-site installation support.
Yes, samples are available with a cost payment (deductible from bulk orders). Full test reports are provided, including material metallurgical analysis, cutting surface roughness, and laser spot diameter measurements.
We offer three customization tiers: appearance (LOGO etching, color matching), functional (industry-specific process modules), and system (multi-language UI, PLC reprogramming). Contact our team to discuss your requirements.
Standard models: 15–20 working days (includes optical calibration and test cutting reports). Custom orders: 25–30 days. Global shipping takes 25 days by sea, with end-to-end support for customs and installation.
