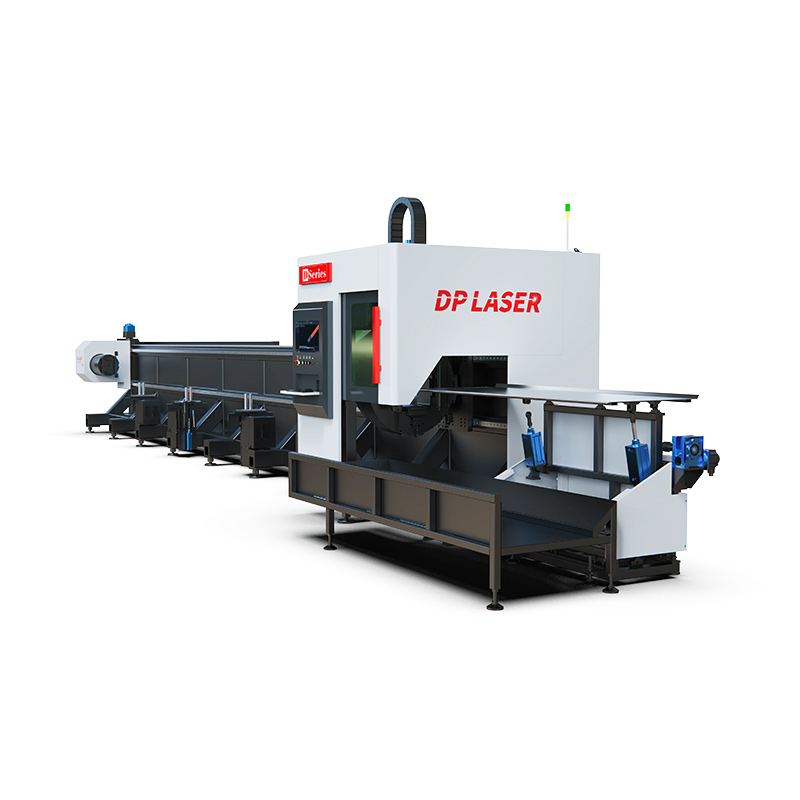

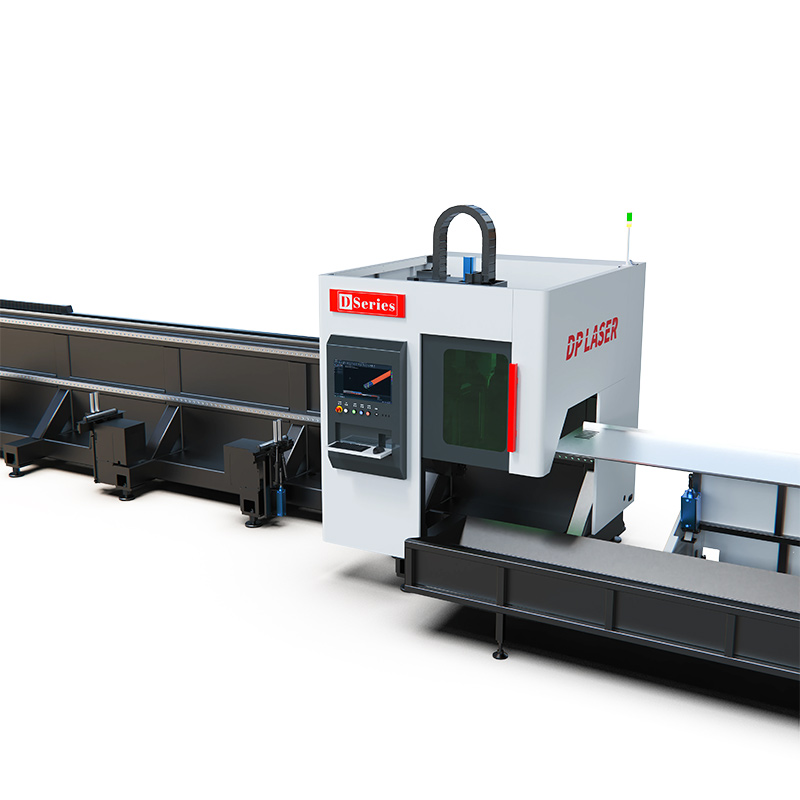

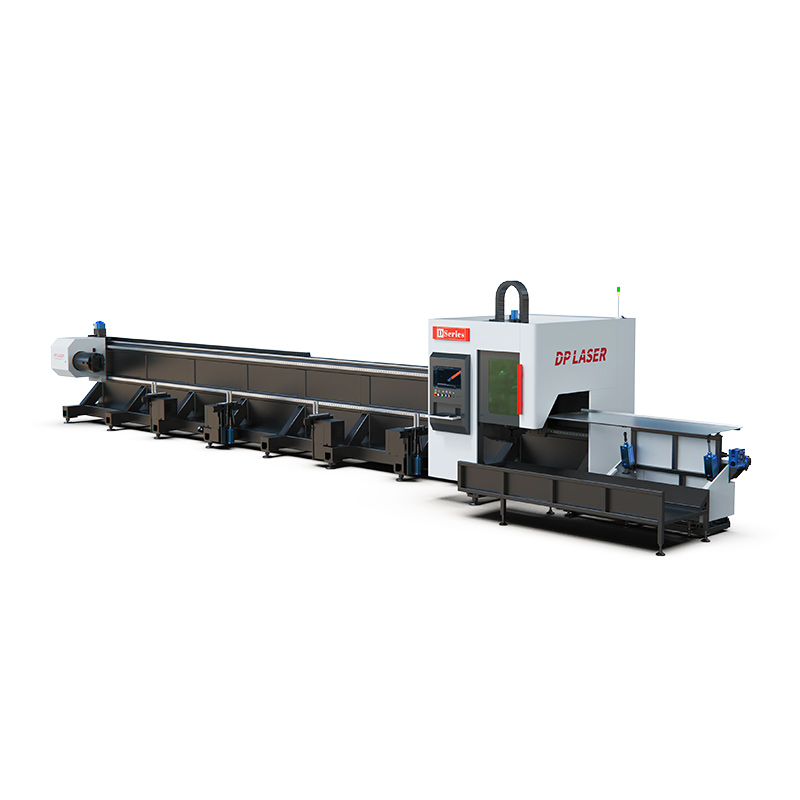

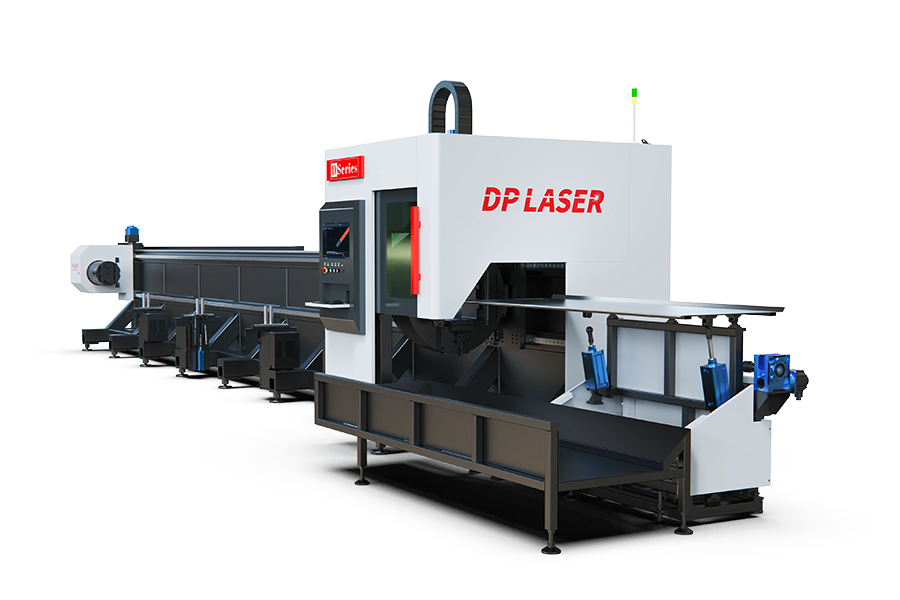

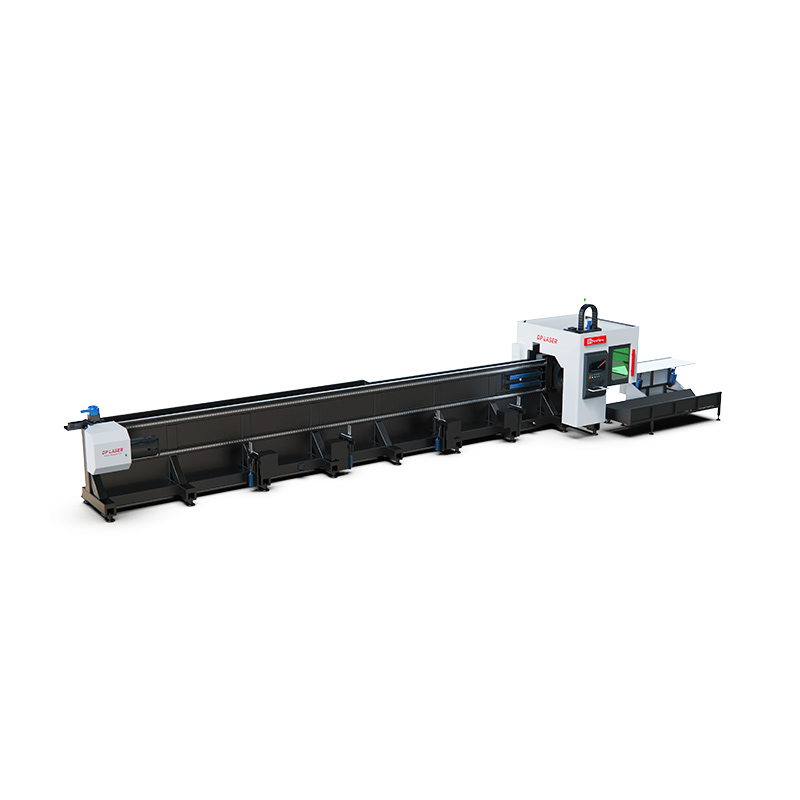

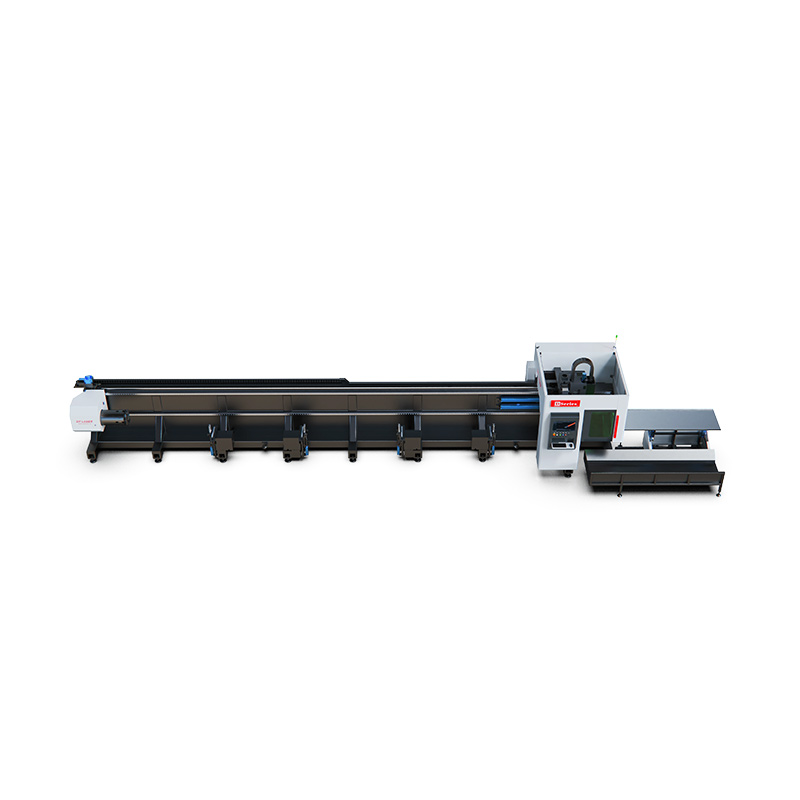

The D-Series Dual-Chuck High-Speed Zero-Scrap Tube Laser Cutting Machine is a revolutionary solution for tube processing, designed by DP LASER to maximize material utilization and production efficiency. Its core advantage lies in the coordinated operation of front and rear chucks—with the rear chuck able to move beyond the front chuck, enabling effortless processing of long profiles and ultra-short tail waste cutting. The side-mounted rear chuck structure simplifies tube loading, while the automatic unloading and scrap collection system supports high-volume batch production. With a horizontal design for enhanced stability and intelligent tube cutting software, this machine delivers precision and reliability for global tube processing needs.
Front and rear chucks work in tandem to achieve ultra-short tail material cutting, significantly reducing material loss and improving utilization rates. This design is especially beneficial for large channels and steel beams, lowering material costs and boosting profitability.
The horizontal design ensures smooth operation and high cutting accuracy, complemented by intelligent tube cutting software for fully automated and intelligent workflows. Consistent performance is guaranteed even during long production runs.

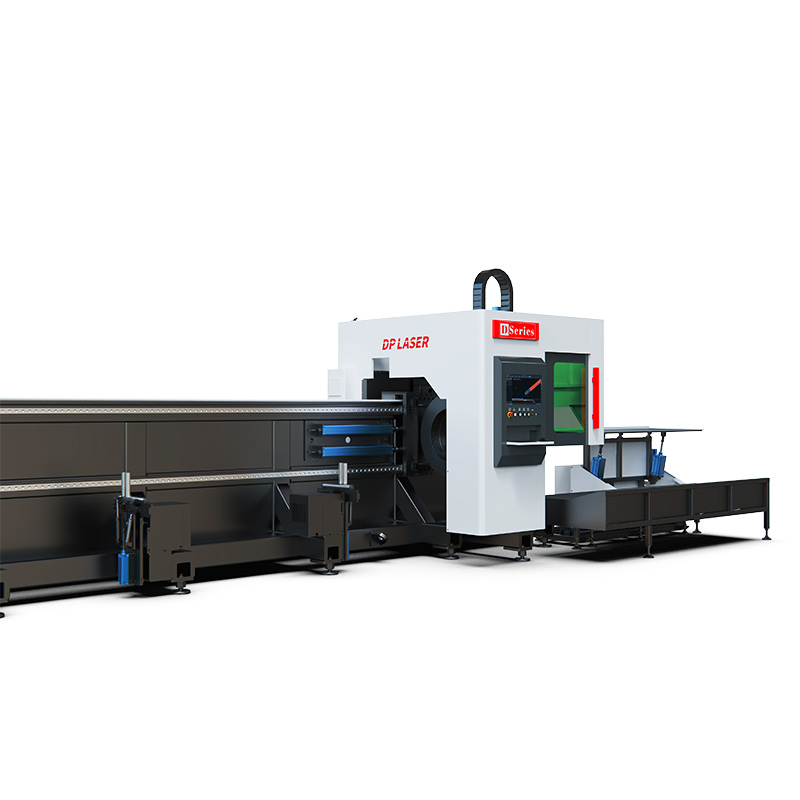

The side-hung rear chuck simplifies tube loading, reducing operational complexity and saving time. This design ensures smooth and efficient production workflows, ideal for high-volume environments.
Equipped with an automatic unloading and remnant collection system, the machine minimizes manual intervention—supporting 24/7 batch production and reducing labor costs.
Optional fully automatic or semi-automatic feeding racks adapt to diverse production needs and workflow preferences, enhancing operational flexibility for different tube processing scenarios.
Model | Cutting Range | Laser Output Power | X Axis Travel | Y Axis Travel | Z Axis Travel | X/Y Axis Positioning Accuracy | Maximum Acceleration |
DPE-D6012 | Length 6.5 meters, round tube diameter 10-120MM, load bearing 20KG/meter, full-stroke chuck | 1500W, 2000W, 3000W | 6200mm | 500mm | 200mm | 0.02mm/m | 1.0G |
DPE-D6016 | Length 6.5 meters, round tube diameter 20-160MM, load bearing 20KG/meter, full-stroke chuck | 1500W, 2000W, 3000W | 6200mm | 500mm | 200mm | 0.02mm/m | 1.0G |
DPE-D6024 | Length 6.5 meters, round tube diameter 20-220MM, load bearing 25KG/meter, full-stroke chuck | 1500W, 2000W, 3000W | 6200mm | 500mm | 200mm | 0.02mm/m | 1.0G |
The D-Series Zero-Scrap Tube Laser Cutting Machine is perfect for sheet metal fabrication, kitchen appliance manufacturing, electrical enclosures/cabinets production, lighting and signage creation, electrical equipment assembly, and specialized tube processing. It excels in precision cutting of carbon steel tubes, stainless steel tubes, galvanized steel tubes, aluminum alloy tubes, brass tubes, and copper tubes—catering to construction, automotive, and HVAC industries.
Brand alignment is made easy with laser engraving on equipment shells, including Pantone color matching and vector LOGO etching to reflect your corporate image.
We develop custom process modules for tube-specific needs. Provide details such as tube type, diameter range, and processing speed requirements to get a solution tailored to your industry.
Multi-language UI (German, Spanish, etc.) and PLC reprogramming are offered to support global operations, ensuring seamless integration with your existing workflows.
DP LASER’s facilities are equipped with advanced quality control systems. Nantong Base focuses on high-power laser equipment, while Dongguan Base specializes in export-grade precision tube cutters. Each machine undergoes strict optical calibration and test cutting before delivery.
Standard Models: 80+ units monthly (expandable by 30% with 25-day lead time)
Custom Orders: 25–30 days (30% faster than industry average)
Global Logistics: Door-to-door delivery with customs clearance and on-site installation support
Lifetime complimentary online technical training is included. On-site training sessions are available post-installation, covering machine operation, maintenance, troubleshooting, and safety protocols to ensure your team’s proficiency.
Yes, we provide paid samples (cost deductible from bulk orders) with comprehensive test reports, including tube cutting precision, surface roughness, and material utilization rate analysis.
Absolutely. The rear chuck can move beyond the front chuck, enabling efficient processing of 6.5-meter-long tubes with ultra-short tail waste—ideal for large profiles and steel beams.
Yes, we provide optional fully automatic or semi-automatic feeding racks to adapt to your production volume and workflow requirements.
We have delivered over 25,000 units in 13 years, with an annual capacity of 20,000+ units. Peak season capacity for laser cutters can be expanded by 30% with short notice.
We offer lifetime online technical support, on-site installation, training, and maintenance guidance. Our global logistics team ensures timely spare parts delivery if needed.
