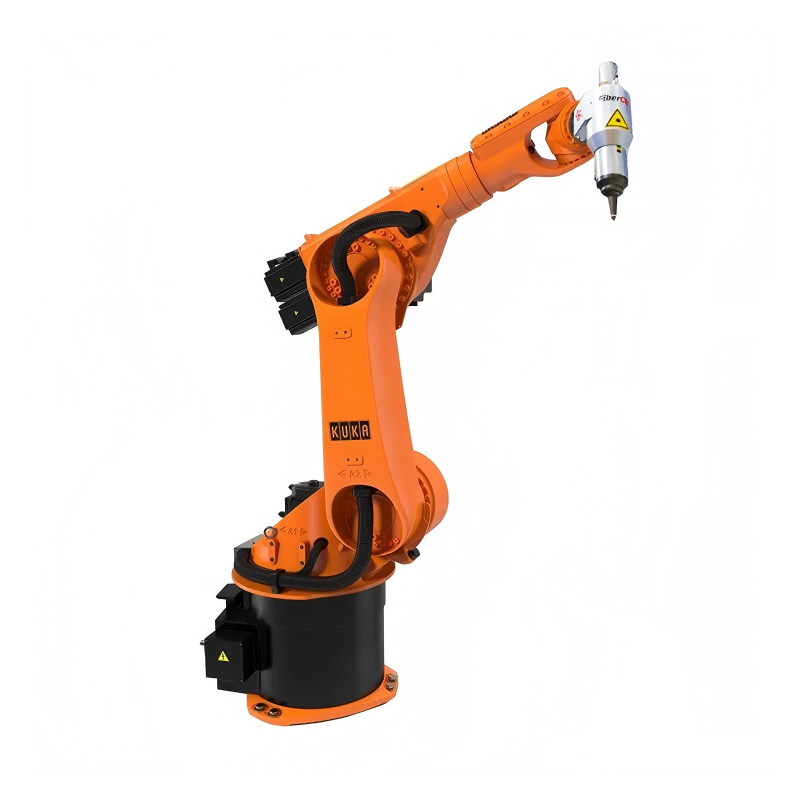

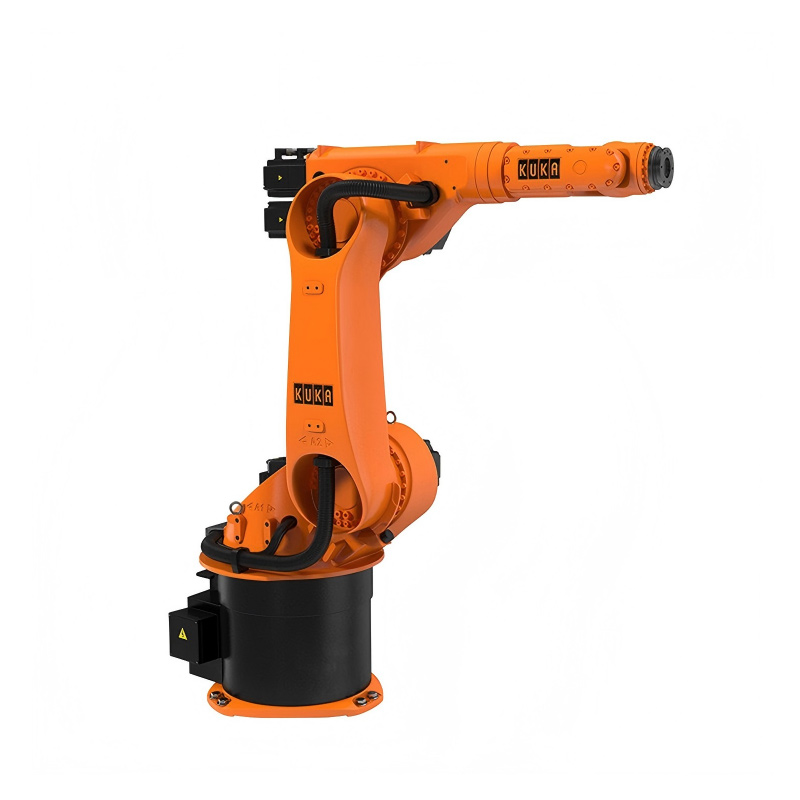

The Automatic Robotic Laser Welding Machine (DP LASER AP Series) is a laser-robot integrated solution for industrial mass production. It combines a high-power fiber laser, 6-axis robot arm (KUKA-derived technology), intelligent control system, and precision sensors to enable 24-hour automated batch processing. With advantages of high weld accuracy, fast speed, and multi-material compatibility, it supports stable and efficient production in automotive, 3C electronics, and machinery industries.
High Precision & Low Defect Rate: Repeat positioning accuracy of ±0.02–0.08 mm, paired with real-time parameter adjustment, reduces welding defects (e.g., gaps, spatter) to less than 0.5%.
24/7 Continuous Operation: Industrial-grade components (laser generator, robot arm) ensure stable runtime over 8,000 hours/year, boosting batch production efficiency by 30% vs. traditional welding.
Anti-Interference & Stable Performance: Shielding technology resists electromagnetic interference and vibration (≤50μm foundation vibration), enabling reliable work in complex factory environments.
Flexible & Multi-Industry Adaptability: Modular design allows quick mode switching for welding, cutting, or marking. Compatible with aluminum, steel, plastics, and other materials.
Laser Welding Robot-Parameters Parameters | |||||
Parameters | DP-M1550-12 | DP-M1840-25 | DP-M2010-12 | DP-F10-05 | DP-F14-10 |
Flexibility | 6-axis | 6-axis | 6-axis | 6-axis | 6-axis |
Maximum Working Radius | 1550mm | 1840mm | 2010mm | 922mm | 1400mm |
Maximum Load | 12kg | 25kg | 12kg | 5kg | 10kg |
Repeatability | ±0.05mm | ±0.08mm | ±0.08mm | ±0.02mm | ±0.05mm |
Robot Weight | 170kg | 260kg | 185kg | 22kg | 40k g |
Control Cabinet Weight | 60kg | 80kg | 60kg | / | / |
Power | 4.5kw | 4.5kw | 4.5kw | 24V/1.5A | 24V/1.5A |
Temperature | 0~45℃ | 0~45℃ | 0~45℃ | 0~45℃ | 0~45℃ |
Applicable Laser Power | 1000-3000W | 1000-6000W | 1000-3000W | 1000-3000W | 1000-3000W |
Material (Carbon Steel, Stainless Steel) | 0.5-5mm | 0.5-10mm | 0.5-5mm | 0.5-5mm | 0.5-10mm |
Applicable Material (Aluminum) | 0.5-4mm | 0.5-8mm | 0.5-4mm | 0.5-4mm | 0.5-8mm |
Parameters | DP-M1550-12 | DP-M1840-25 | DP-M2010-12 | DP-F10-05 | DP-F14-10 |
Flexibility | 6-axis | 6-axis | 6-axis | 6-axis | 6-axis |
Maximum Working Radius | 1550mm | 1840mm | 2010mm | 922mm | 1400mm |
Maximum Load | 12kg | 25kg | 12kg | 5kg | 10kg |
Repeat Positioning Accuracy | ±0.05mm | ±0.08mm | ±0.08mm | ±0.02mm | ±0.05mm |
Robot Weight | 170kg | 260kg | 185kg | 22kg | 40kg |
Control Cabinet Weight | 60kg | 80kg | 60kg | / | / |
Power | 4.5kW | 4.5kW | 4.5kW | 24V/1.5A | 24V/1.5A |
Temperature | 0~45℃ | 0~45℃ | 0~45℃ | 0~45℃ | 0~45℃ |
Laser Power | 1000-3000W | 1000-6000W | 1000-3000W | 1000-3000W | 1000-3000W |
Automotive Parts Welding: Butt, plug, and lap welding of engine brackets, chassis components, and battery packs (aluminum/steel).
3C Electronics Precision Assembly: Micro-welding of mobile phone frames, computer heat sinks, and camera modules (high precision required).
Construction Machinery & Hardware: Welding of hydraulic cylinders, steel structures, and hardware fittings (heavy-load components).
Metal Surface Treatment: Laser quenching and cladding of wear-resistant parts (e.g., gears, bearings) to extend service life.
Robot & Laser Matching: Customize robot load (5–25 kg) and laser power (1000–6000W) based on workpiece size and material.
Process Customization: Develop dedicated welding parameters for special materials (e.g., high-strength steel, heat-sensitive plastics).
System Integration: Integrate with automated feeding/conveying lines to build fully closed-loop production systems.
Warranty: 2-year warranty for robot arms and laser generators; 1-year warranty for control cabinets.
Training: On-site technical training at DP LASER’s Nantong/Dongguan bases; online courses for maintenance personnel.
Production Assurance: Monthly output of 120+ units; 7-day lead time for urgent orders.
Does DP LASER have in-house production facilities to ensure quality?
Yes. Nantong Base (90-acre) produces high-power laser equipment; Dongguan Base (40,000㎡) focuses on precision robots. Virtual factory tours are available within 72 hours.
What’s the delivery time for custom models?
Custom orders take 25–30 working days (30% faster than industry average), including parameter debugging and test welding reports. Global sea freight takes 25 days, with customs clearance support.
