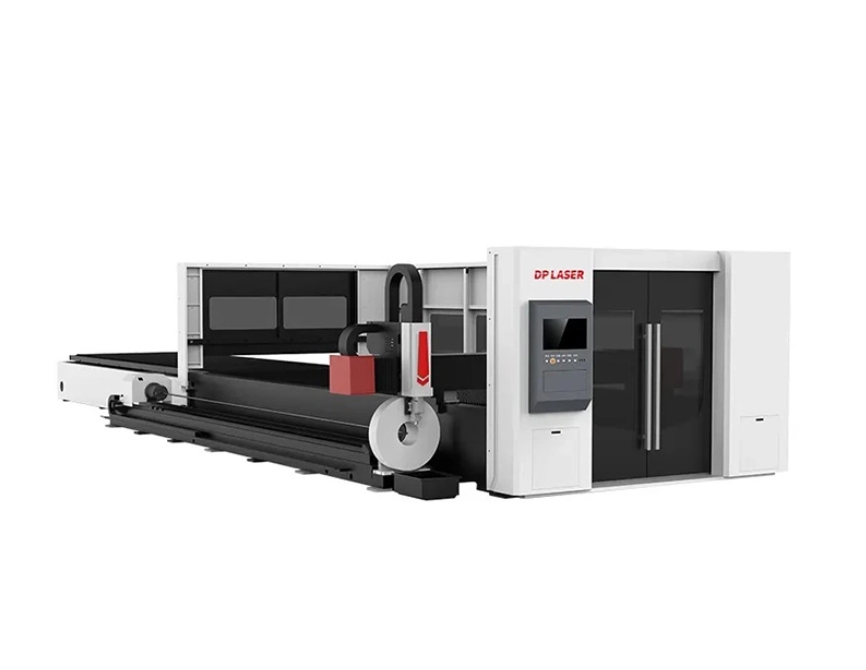

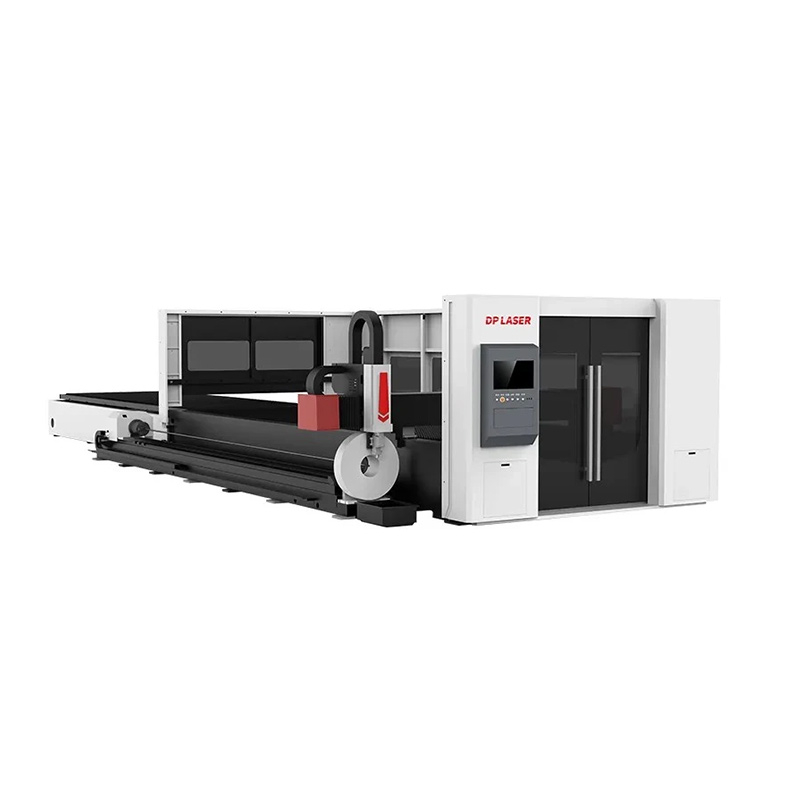

The BG-Series Integrated Sheet & Tube Laser Cutting Machine from DP LASER revolutionizes multi-task processing with its space-saving integrated design. Combining flat-sheet and tubular profile cutting functions in one machine, it eliminates the need for separate equipment—slashing procurement costs and reducing floor space while enhancing layout flexibility. Boasting a maximum linkage speed of 100 m/min and 1.5G acceleration, it delivers exceptional dynamics to shorten production cycles. Engineered with a stress-relieved matrix-structured bed and patented servo-assisted floating support, it guarantees high precision for both sheet and tube cutting, catering to diverse manufacturing demands.
With a maximum linkage speed of 100 m/min and 1.5G acceleration, the machine outperforms traditional separate sheet and tube cutters. It reduces cycle times for mixed-production tasks, enabling faster turnaround for orders requiring both sheet metal parts and tubular components.
Equipped with dual pneumatic chucks, the machine handles round tubes (10–240mm diameter), square tubes, angle iron, and channel steel. It supports single tubes up to 300 kg, with full-stroke chuck design ensuring stable clamping for long-length cutting (up to 6.5 meters).
Featuring two pneumatic concave roller supports, the machine automatically follows the tube’s rotation radius during cutting. This prevents sagging or deformation of long tubes, ensuring consistent cutting accuracy across the entire workpiece—critical for high-precision applications like exhaust pipes and brackets.
The bed is constructed from welded carbon steel, undergoing high-temperature annealing + natural aging to fully release internal stress. This robust structure resists long-term deformation even under intensive workloads, maintaining precision for years of continuous operation.
By combining two cutting functions in one unit, the machine reduces equipment procurement costs by eliminating the need for separate sheet and tube cutters. It also saves valuable floor space, making it ideal for small-to-medium factories or workshops with limited layout flexibility.
Model | Chuck Size | Cutting Range |
BG-Q6012 | 6-meter pneumatic 120 chuck | Length: 6.5 meters; Circular tube diameter: 10–120mm; Square tube diameter: 10–120mm; Load-bearing capacity: 20KG/meter; Full stroke chuck |
BG-Q6016 | 6-meter pneumatic 160 chuck | Length: 6.5 meters; Circular tube diameter: 10–160mm; Square tube diameter: 10–160mm; Load-bearing capacity: 20KG/meter; Full stroke chuck |
BG-Q6022 | 6-meter pneumatic 220 chuck | Length: 6.5 meters; Circular tube diameter: 10–220mm; Square tube diameter: 10–220mm; Load-bearing capacity: 20KG/meter; Full stroke chuck |
The BG-Series Integrated Sheet & Tube Laser Cutting Machine is widely used in body panel manufacturing, construction & engineering machinery, bracket production, exhaust pipe fabrication, advertising & signage, home appliances & kitchenware, and other manufacturing sectors. It excels in cutting metal sheets, round tubes, square tubes, angle iron, and channel steel—adapting to both structural and decorative component production.
Enhance your brand identity with laser-etched logos on equipment shells, including Pantone color matching and vector LOGO precision etching. We tailor the machine’s exterior to align with your factory’s aesthetic or brand guidelines.
We develop industry-specific process modules based on your unique needs—provide material type (sheet/tube), thickness/radius range, and processing speed requirements. Whether for automotive exhaust pipes or construction brackets, the machine is optimized for your workflow.
Facilitate global operations with multi-language UI support (German, Spanish, etc.) and PLC reprogramming. The system can be integrated with your existing production management software for seamless workflow coordination.
Enjoy lifetime complimentary online technical training. Post-installation and commissioning, your team can attend on-site training at our domestic center until fully proficient. Core modules cover laser source operation, electrical & CNC systems, sheet/tube cutting techniques, and preventive maintenance.
Our Nantong Base (Jiangsu) specializes in high-power laser cutters (6kW–30kW) and automated line integration, while the Dongguan Base (Guangdong) is a 40,000㎡ facility focused on export-grade precision equipment. Virtual factory tours (available within 72 hours) showcase our CNC machining centers and laser optics labs.
With 13 years of experience and 25,000+ units delivered, we ensure stable production: 80+ laser cutters monthly (30% expandable with 25-day lead time). Standard models ship in 15–20 working days; custom orders take 25–30 days (30% faster than industry average). Global logistics include 25-day sea freight, customs clearance, and on-site installation support.
Yes, sample testing is offered with a fee (deductible from bulk orders). You’ll receive detailed test reports, including cutting precision data, surface roughness analysis, and material integrity assessments.
Absolutely. We offer appearance (brand etching), functional (process modules), and system (language/PLC) customization. Share your industry (e.g., automotive, construction) and application details for tailored solutions.
Standard models: 15–20 working days (includes calibration and test reports). Custom orders: 25–30 days. Global shipping takes 25 days by sea, with our team providing customs clearance assistance and on-site installation guidance.
