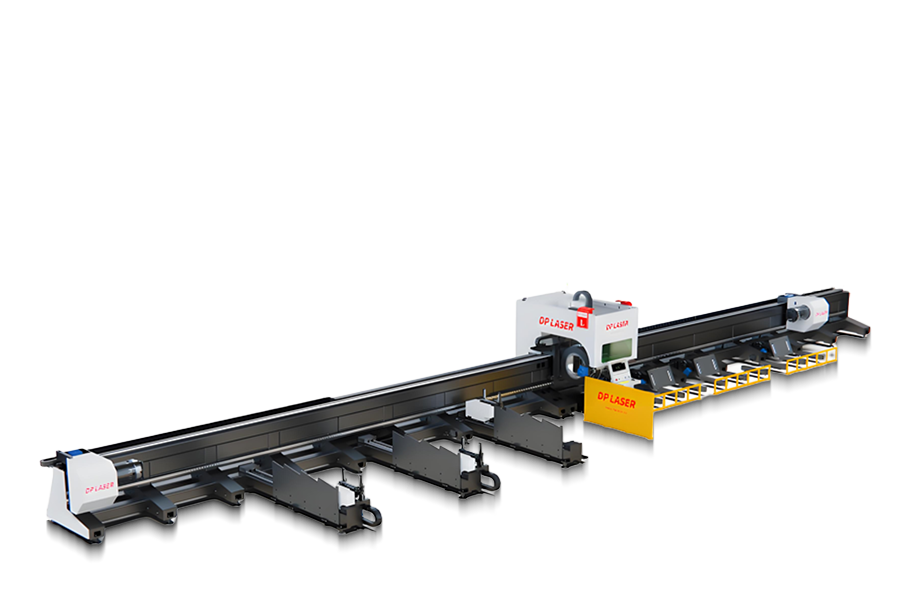

The L-Series Triple-Chuck Zero-Scrap Heavy-Duty Tube Laser Cutting Machine is a high-performance industrial solution engineered for precise and efficient tube processing. Developed by DPLASER, this machine integrates a robust horizontal structure with intelligent cutting technology, delivering exceptional stability and accuracy for high-volume production. Designed to eliminate material waste and streamline workflows, it supports seamless processing of various profiles—from round pipes and square pipes to H-beams—making it a versatile asset for metal fabrication industries. With its side-mounted chuck design and semi-automatic feeding compatibility, the L-Series redefines productivity by reducing labor costs and minimizing downtime.
Stable Operation & Superior Precision: The horizontal framework ensures minimal vibration during high-power cutting, guaranteeing consistent precision for complex tube processing tasks.
Automated Process Optimization: Equipped with advanced intelligent software, the machine enables fully automated cutting sequences, optimizing speed and accuracy while reducing human error.
Efficient Loading & Unloading: The practical side-mounted chuck simplifies material handling, allowing quick and easy loading/unloading of tubes and profiles.
Reduced Labor Dependency: By streamlining material flow, the design cuts down manual intervention, freeing up personnel for other critical tasks.
Productivity Enhancement: Compatible with semi-automatic feeding racks, the machine boosts throughput by enabling continuous material supply for long-run production.
Zero-Scrap Processing: Integrated automatic unloading and waste collection systems ensure maximum material utilization, eliminating scrap and reducing costs.
Multi-Profile Processing: A single machine handles round pipes, square pipes, H-beams, and various other profiles, eliminating the need for multiple specialized tools.
Broad Material Adaptability: Engineered to cut carbon steel, stainless steel, galvanized steel, aluminum alloys, brass, and copper with precision (thickness varies by laser power).
Model | Scope of Pipe Processing | Laser Output Power | Y1 Axis Travel | Y2 Axis Travel | Y3 Axis Travel | X Axis Travel | Z Axis Travel |
DPE-L6060-K22 | Trip: 6000mm, Bearing: 50KG/m; Circular tube diameter: 10-220mm; Square tube diameter: 10-150mm; I-beam: 160×80mm | 3000W | 6060mm | 1500mm | 6060mm | 400mm | 900mm |
DPE-L6060-K35 | Trip: 6000mm, Bearing: 100KG/m; Circular tube diameter: 10-350mm; Square tube diameter: 10-250mm; I-beam: 280×140mm; Big claw travels twice, small claw travels once | 6000W | 6060mm | 1500mm | 6060mm | 400mm | 900mm |
DPE-L12060-K35 | Trip: 12000mm, Bearing: 100KG/m; Circular tube diameter: 10-350mm; Square tube diameter: 10-250mm; I-beam: 280×140mm; Big claw travels twice, small claw travels once | 6000W | 12060mm | 1500mm | 12060mm | 400mm | 900mm |
DPE-L120120-K50 | Trip: 12000mm, Bearing: 150KG/m; Circular tube diameter: 10-500mm; Square tube diameter: 10-360mm; I-beam: 360×200mm; Big Claw 200-500mm with two trips, small claw one trip | 6000W | 120120mm | 1500mm | 120120mm | 400mm | 900mm |
The L-Series Triple-Chuck Zero-Scrap Heavy-Duty Tube Laser Cutting Machine is ideal for:
Sheet metal fabrication
Kitchen appliance manufacturing
Electrical enclosures/cabinets production
Lighting and signage manufacturing
Electrical equipment assembly
Diverse metal product processing (structural components, decorative parts)
Laser engraving on equipment shells with Pantone color matching and vector LOGO etching.
Development of custom process modules tailored to specific industry needs (requires material type, thickness range, and processing speed details).
Multi-language UI support (German, Spanish, etc.) and PLC reprogramming for seamless integration with existing workflows.
Production Capability: Manufactured at Nantong (90-acre high-power laser cutter base) and Dongguan (40,000㎡ export-grade precision facility) with virtual factory tours available within 72 hours.
Stable Capacity: 80+ standard laser cutters monthly (30% expandable in 25 days); 25,000+ units delivered in 13 years.
Training & Maintenance: Lifetime complimentary online technical training; on-site sessions at domestic training centers post-installation.
Delivery Timeline: Standard models: 15–20 working days; custom orders: 25–30 days (30% faster than industry average); global sea freight with customs clearance and on-site installation support.
Yes, paid samples are available (cost deductible from bulk orders) with full test reports, including material metallurgical analysis, cutting surface roughness, and laser spot diameter measurements.
Absolutely—we offer appearance (LOGO/color), functional (process modules), and system (multi-language/PLC) customization to meet your unique requirements.
Standard models take 15–20 working days for production, plus 25 days of global sea freight. Custom orders require 25–30 days of production, with the same logistics timeline.
