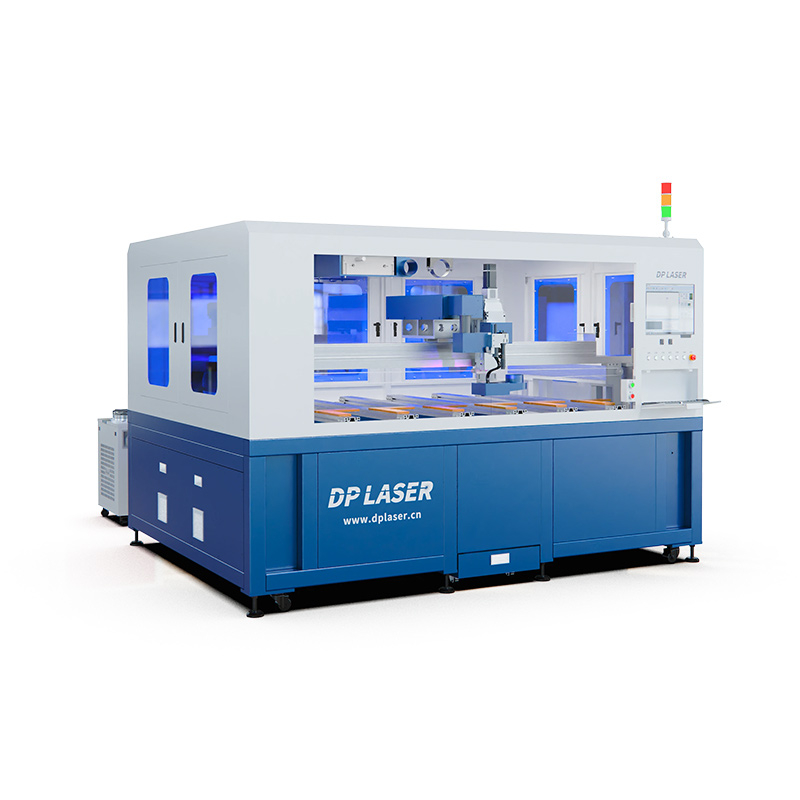

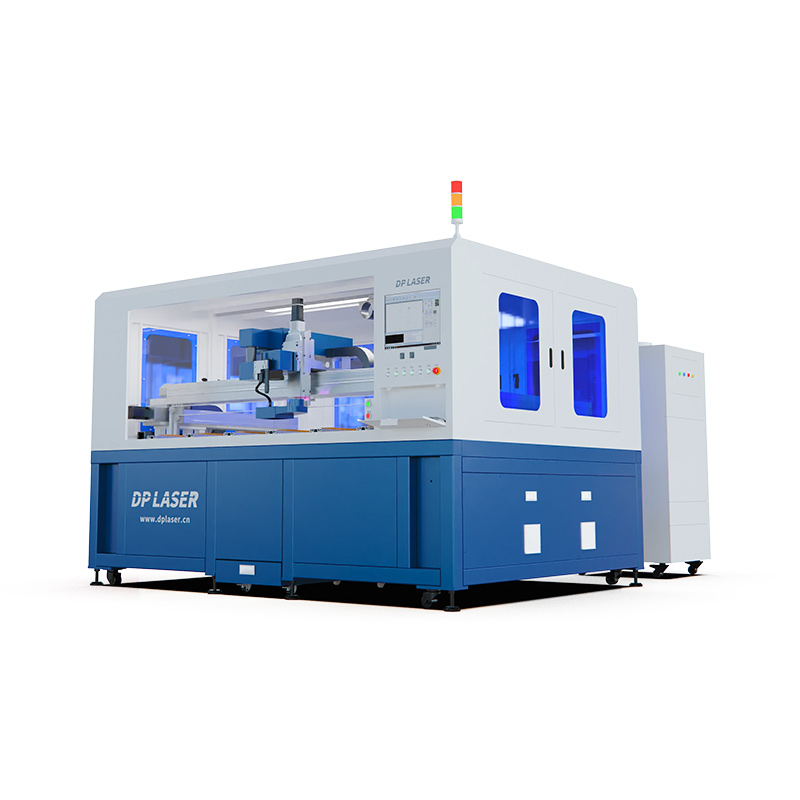

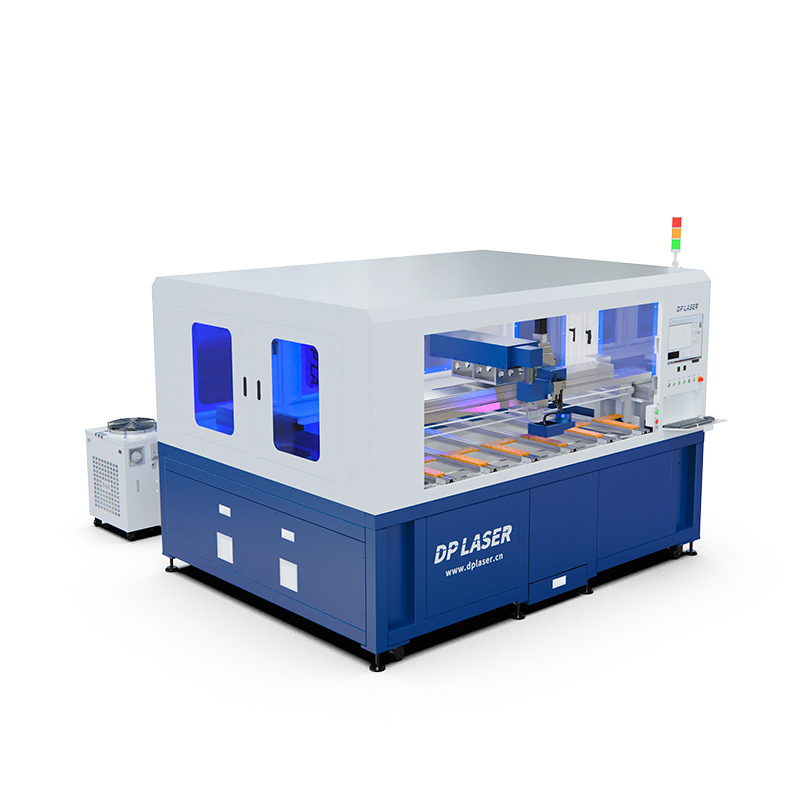

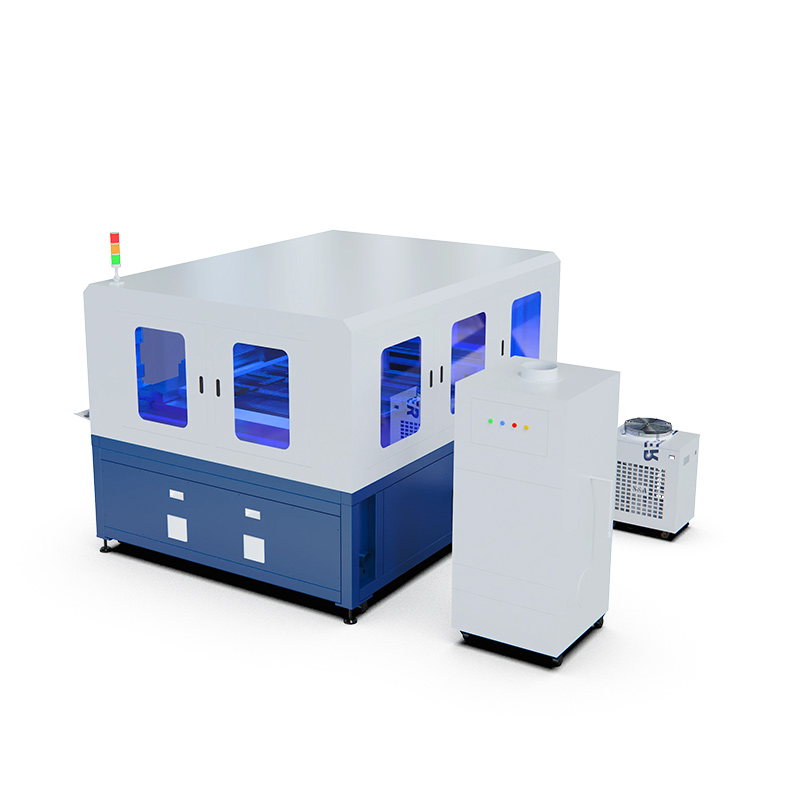

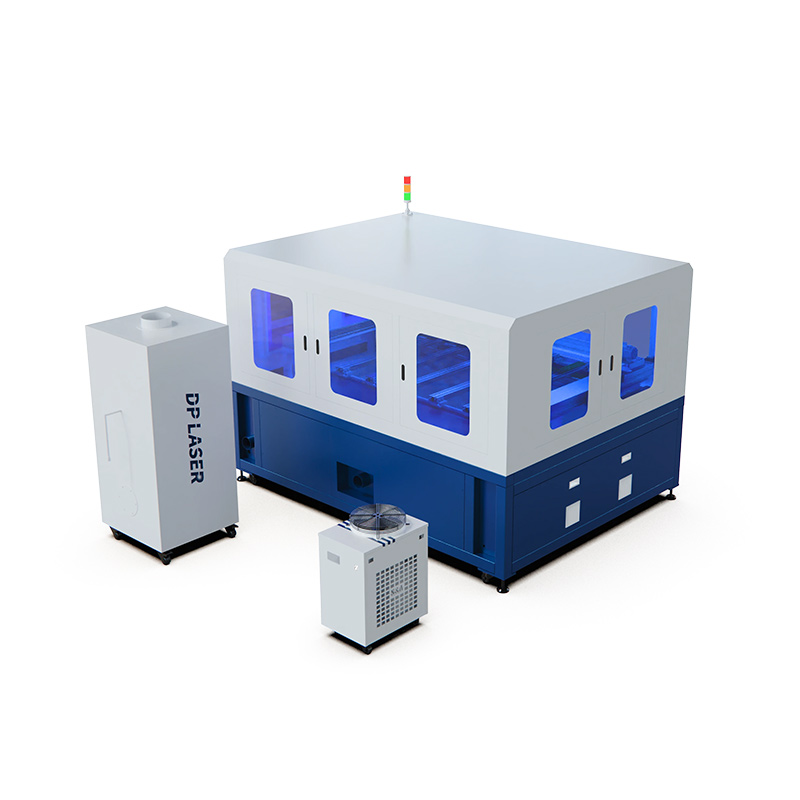

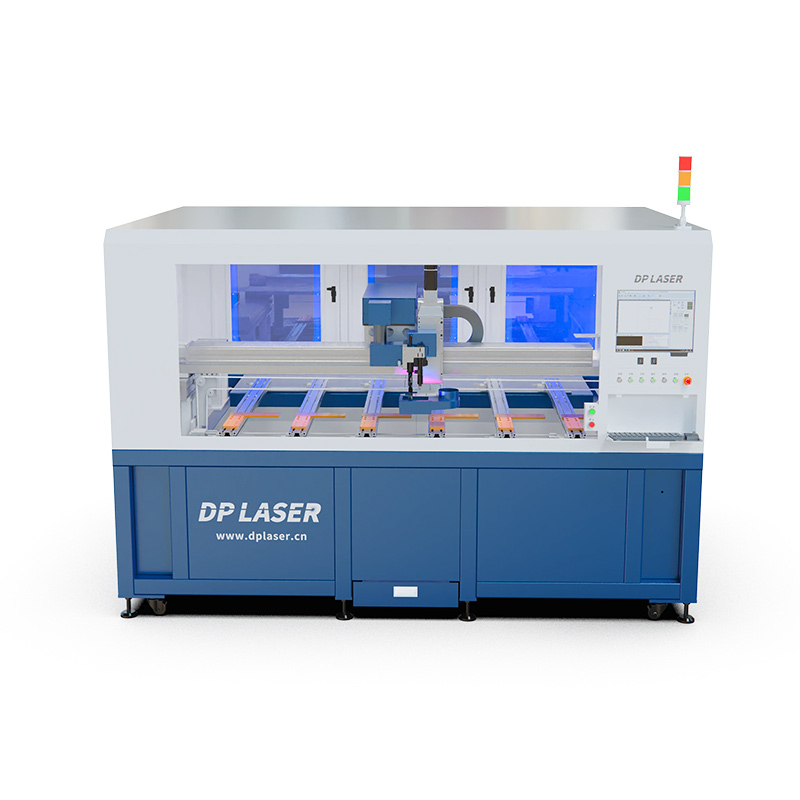

Targeting the pain points of traditional mechanical drilling—such as edge chipping, crack formation, and low processing efficiency—this machine leverages advanced nanosecond laser technology to deliver clean, consistent holes with minimal material damage. Ideal for high-volume production lines in the electronic, optical, and photovoltaic sectors, the DP Series nanosecond laser glass drilling machine balances speed and precision, helping manufacturers reduce reject rates and optimize operational costs. Whether handling thin electronic glass or thick photovoltaic panels, this device stands out as a reliable solution for modern glass processing needs.
Boasts a hole diameter accuracy of ±0.01mm and repeat positioning precision of ±0.005mm, meeting the stringent requirements of micro-drilling for smartphone glass back covers and optical lens components. This level of precision eliminates post-processing steps, saving both time and labor costs for manufacturers.
Adopts non-contact laser ablation to process glass, avoiding mechanical stress that causes edge chipping and internal cracks. This feature is especially critical for fragile thin glass (0.1–2mm thickness), ensuring the integrity of finished products and reducing raw material waste by up to 30% compared to traditional methods.
Equipped with a high-speed linear motor and intelligent CNC system, supporting continuous batch drilling with a processing speed of up to 50 holes per minute. The machine also integrates an automatic loading and unloading module, reducing manual intervention and boosting overall production efficiency by 2–3 times.
Compatible with a wide range of glass types, including float glass, tempered glass, borosilicate glass, photovoltaic glass, and optical glass. It can drill holes of different shapes (round, square, irregular) according to customized requirements, adapting to diverse application scenarios in multiple industries.
Category | Details |
Laser Parameters | Wavelength: 1064nm; Pulse Width: 10–100ns; Laser Power: 50W/100W/200W (optional); Repetition Frequency: 1–200kHz |
Drilling Performance | Hole Diameter Range: 0.05–5mm; Glass Thickness Range: 0.1–10mm; Positioning Accuracy: ±0.005mm; Processing Speed: Up to 50 holes/min |
Machine Configuration | Worktable Size: 300×300mm/500×500mm (customizable); Control System: CNC + Touch Screen; Drive System: High-Speed Linear Motor |
Power & Dimensions | Power Supply: AC 220V/380V 50/60Hz; Machine Dimensions: 1500×1200×1800mm; Net Weight: 800kg/1200kg |
Specialized in drilling micro-holes on smartphone touchscreen glass, tablet back cover glass, and sensor glass components. The high precision ensures the seamless integration of electronic parts, meeting the miniaturization trend of consumer electronics products.
Applied to the processing of optical lenses, microscope slides, prism glass, and camera lens modules. The non-contact drilling method preserves the optical performance of the glass, avoiding any distortion that affects light transmission.
Drills guide holes on photovoltaic glass panels to facilitate the connection of solar cells, improving the energy conversion efficiency of solar modules. The machine can handle large-size photovoltaic glass (up to 2000×1000mm) with stable performance.
Processes glass components for in-car displays, rearview mirrors, and sensor covers. It meets the automotive industry’s strict quality standards, ensuring the durability and reliability of glass parts under harsh working conditions.
We understand that different customers have unique processing requirements, so we offer comprehensive customization services for the DP Series nanosecond laser glass drilling machine:
Drilling Path Customization: Tailor drilling paths and hole patterns according to customer-provided drawings or samples, supporting irregular hole processing for special-shaped glass.
Worktable Customization: Adjust the worktable size and structure to match the customer’s existing production line layout, realizing seamless integration with automated production systems.
Function Module Customization: Add optional modules such as automatic inspection systems, laser cleaning functions, or multi-laser head configurations to meet specific production needs.
Solution Customization: Provide one-stop turnkey solutions, including pre-sales technical consultation, on-site installation, and personalized process debugging.
The DP Series nanosecond laser glass drilling machine complies with international quality standards, holding CE, ISO 9001, and FCC certifications, which ensures its eligibility for export to global markets. We are committed to providing comprehensive after-sales support to our customers:
Warranty Service: Offer a 1-year warranty for the whole machine and a 2-year warranty for core components (laser source, control system), with free replacement of faulty parts during the warranty period.
On-Site Support: Deploy professional technical teams to provide on-site installation, commissioning, and training services in major global regions, including Europe, North America, and Southeast Asia.
Remote Maintenance: Provide 24/7 remote technical support via video call or online debugging, solving equipment problems in a timely manner to minimize production downtime.
Training Services: Conduct free operation and maintenance training for customers’ staff, covering equipment operation, daily maintenance, and troubleshooting skills.
