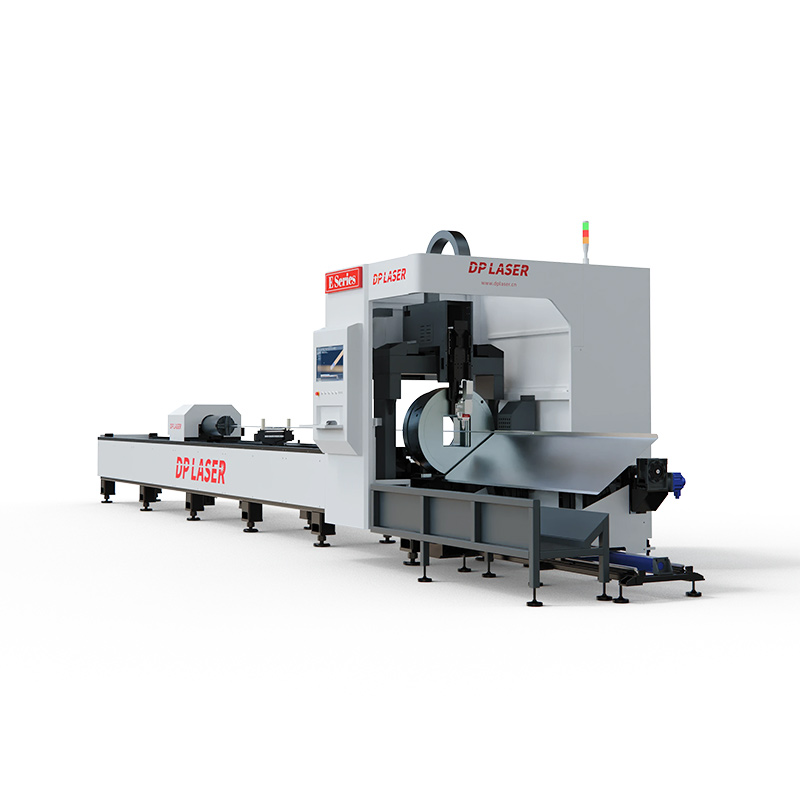

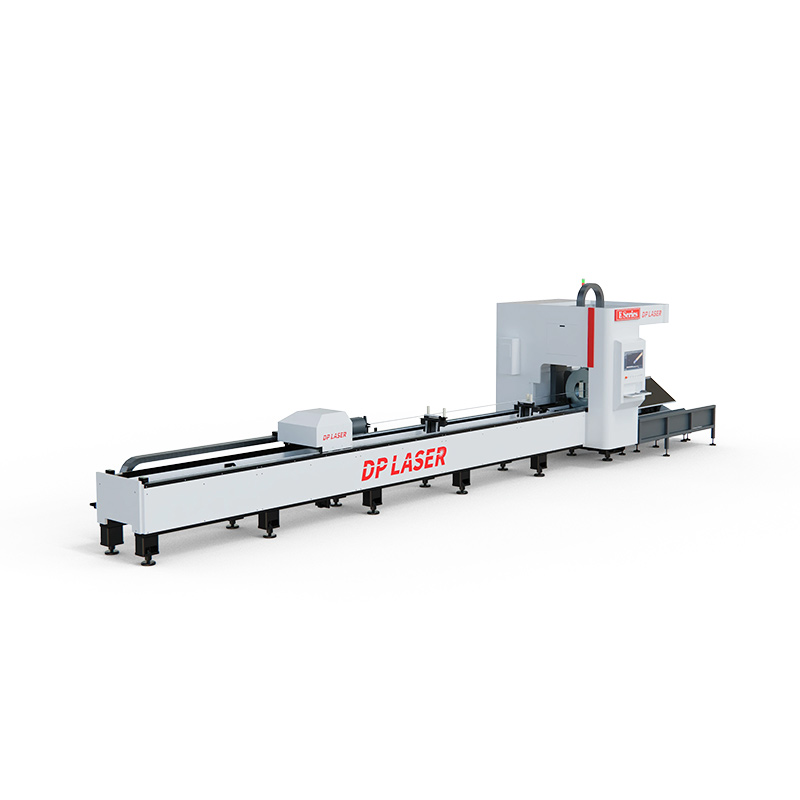

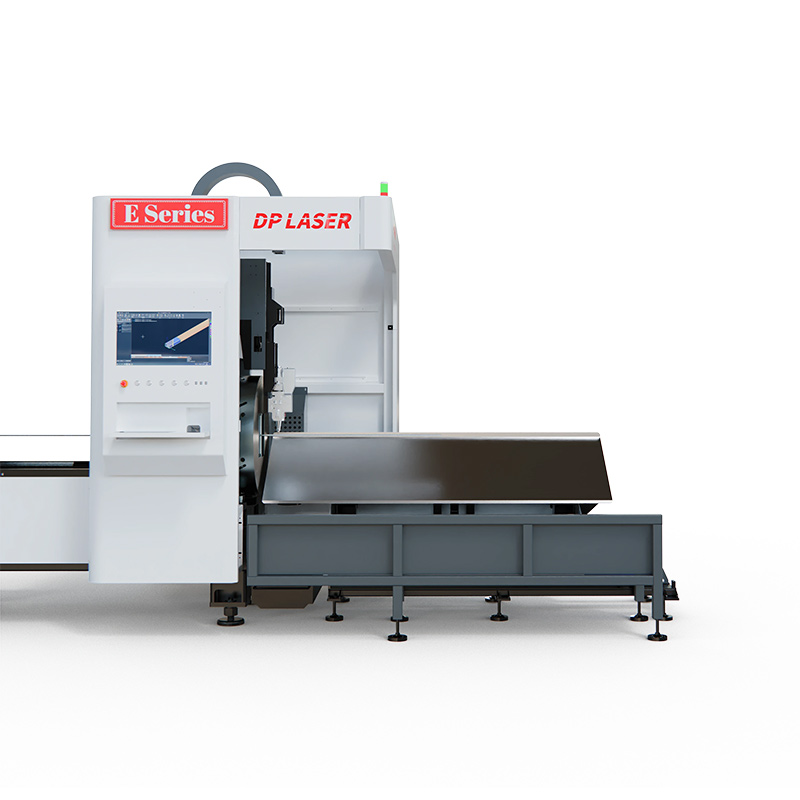

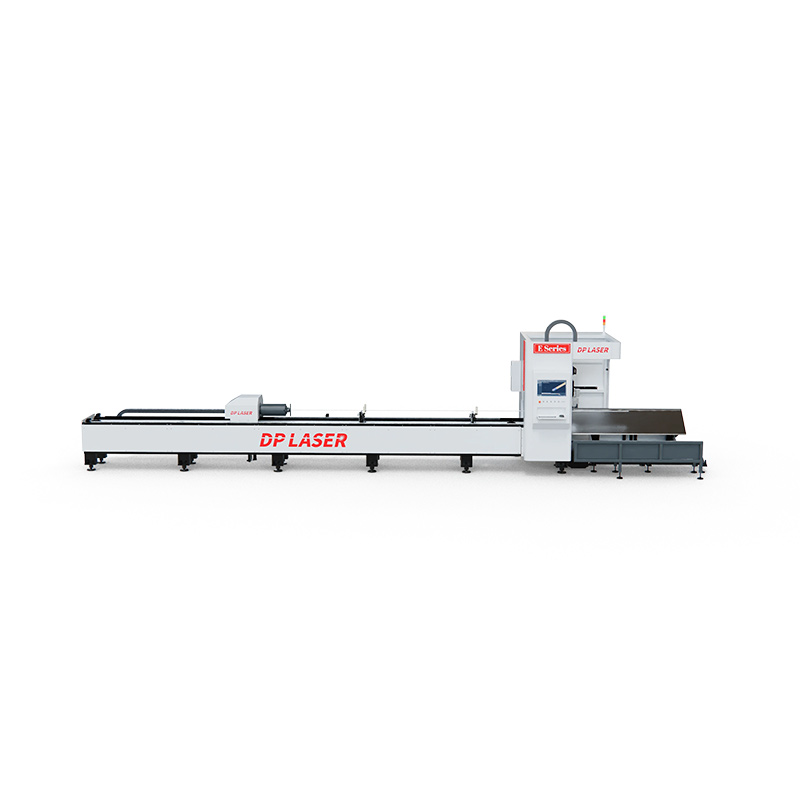

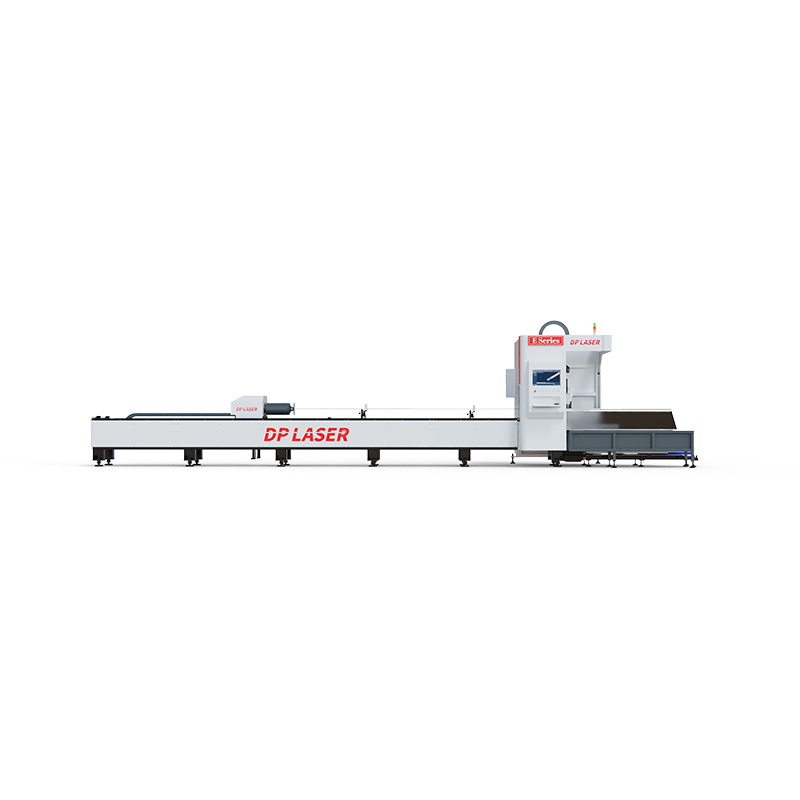

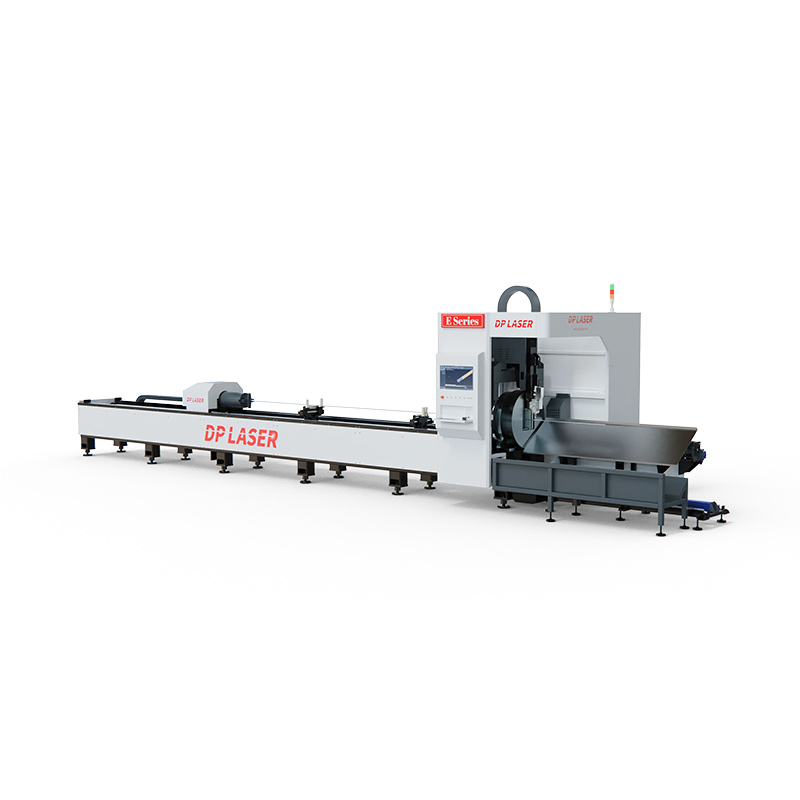

The E-Series Dual-Chuck Heavy-Duty Tube Laser Cutting Machine is a high-performance solution designed by DPLASER for heavy-duty tube processing. Featuring a horizontal dual-chuck structure, high-torque servo motors, and imported cutting software, this machine excels in cutting large-diameter, thick-walled tubes with exceptional precision and efficiency. It is engineered to meet the demands of high-volume production in industries such as construction machinery, automotive manufacturing, and petroleum pipelines, providing a comprehensive solution for tube cutting, drilling, and beveling.
Equipped with two high-precision chucks, the machine provides firm clamping of tubes during rotation and cutting. The full-stroke chuck design accommodates tubes of varying lengths (up to 6.5 meters) and diameters (10–160mm), preventing slippage and ensuring consistent cutting accuracy across the entire tube length.
All X/Y/Z linear axes and A/B rotary axes are driven by servo motors, delivering a maximum acceleration of 1.3G and a linear axis positioning speed of 120m/min. The rotation speed reaches 120rpm, outperforming industry averages and enabling rapid, precise cutting of complex tube shapes.
DPLASER’s proprietary servo-assisted support system adjusts vertically to follow the tube’s rotational radius, preventing sagging during cutting. This ensures stable support for long tubes, enhancing machining accuracy and reducing material waste.
Integrated fully automatic loading and unloading devices eliminate manual handling, reducing labor costs and improving production efficiency. The system supports continuous operation, making it ideal for 24/7 high-volume production lines.
Model | DPE-M6012 | DPE-M6016 |
Scope of Pipe Processing | Length: 6.5 meters; Round tube diameter: 10–120mm; Load bearing: 20KG/meter; Full-stroke chuck | Length: 6.5 meters; Round tube diameter: 20–160mm; Load bearing: 20KG/meter; Full-stroke chuck |
Laser Output Power | 1500W, 2000W, 3000W | 1500W, 2000W, 3000W |
Maximum Acceleration | 1.3G | 1.3G |
X/Y-axis Repeat Positioning Accuracy | ±0.02mm | ±0.02mm |
X/Y-axis Positioning Accuracy | 0.02mm/m | 0.02mm/m |
Maximum Load | 86KG | 86KG |
Linear Axis Positioning Speed | 120m/min | 120m/min |
Rotation Speed | 120rpm | 120rpm |
Cooling System | Industrial water cooling | Industrial water cooling |
Power Supply | AC 380V±10%, 50/60Hz | AC 380V±10%, 50/60Hz |
The E-Series Dual-Chuck Heavy-Duty Tube Laser Cutting Machine is widely applied in:
Construction Machinery: Hydraulic tubes, structural tubes for excavators and cranes
Automotive & Locomotive Manufacturing: Frame tubes, exhaust pipes, chassis components
Petroleum & Pipeline Industry: Oil and gas transmission pipes, pipeline fittings
Fitness Equipment: Steel tubes for treadmills, weight machines, and sports racks
Agricultural Machinery: Tractor frames, irrigation pipes, harvester components
Home Appliances: Refrigerator condenser tubes, air conditioner copper tubes
Laser etching of brand logos and model numbers on the machine shell
Custom color matching (Pantone color system supported) for seamless integration into production lines
Development of custom process modules for specific tube materials (carbon steel, stainless steel, aluminum alloy)
Adjustment of chuck size and clamping force for special-shaped tubes (square, rectangular, oval)
Integration of bevel cutting and drilling functions for industry-specific requirements
Multi-language UI interface (German, Spanish, French, etc.) for global users
PLC reprogramming to match existing production line control systems
Customized data analysis and production reporting functions
DPLASER operates two state-of-the-art production bases: Nantong Base (90-acre facility for high-power laser cutters) and Dongguan Base (40,000㎡ factory for export-grade precision equipment). With 13 years of experience and over 25,000 units delivered, the company ensures stable production capacity (80+ laser cutters monthly). Each machine undergoes strict quality inspection, including tube cutting accuracy tests and load-bearing capacity verification.
Lifetime free online technical training (laser source fundamentals, CNC operation, maintenance)
On-site training at DPLASER’s domestic training center until operators achieve proficiency
24/7 technical support via phone, email, and video conference
Spare parts warranty for 1 year, with global logistics support for quick replacement
On-site maintenance service within 48 hours for urgent issues in major regions
Yes, samples are available with a fee (deductible from bulk orders). We provide full test reports, including material metallurgical analysis, cutting surface roughness, and laser spot diameter measurements to ensure the machine meets your requirements.
Absolutely. We offer functional customization for special-shaped tubes (square, rectangular, oval) and specific materials. Please provide details such as tube type, thickness range, and processing speed requirements for tailored solutions.
Standard models are delivered within 15–20 working days (including optical calibration and test cutting reports). Custom orders take 25–30 days, which is 30% faster than the industry average. Global sea freight takes 25 days, including destination customs clearance and on-site installation support.
Yes, our professional team provides on-site installation, commissioning, and operator training within 7 working days of delivery. We also offer complimentary online training modules for ongoing skill improvement.
We look forward to working with you to optimize your glass processing workflow and achieve higher profitability!
