Upgrading your metal fabrication capabilities often represents a massive operational shift. Moving from legacy cutting methods—such as plasma, waterjet, or older CO2 systems—to modern fiber laser technology requires a high capital investment. Manufacturers frequently struggle to balance advanced performance needs against strict hardware budgets. Understanding the underlying mechanics of these systems is critical to avoiding over-specifying or under-equipping your shop floor. Without a firm grasp of how the physical technology operates, you risk overspending on unnecessary wattage or severely bottlenecking your daily production lines. This comprehensive guide will demystify the physics behind fiber lasers. We will translate these complex mechanical principles into concrete evaluation criteria for smarter procurement. You will learn exactly how to align machine specifications directly to your long-term production scaling goals.
Understanding a Fiber Laser Cutting Machine requires breaking down its three fundamental operational stages. Each phase relies on distinct physical processes. These mechanics dictate the system's operational reliability on your shop floor.
The process begins inside the power source. Seed lasers generate the initial, low-power light. This light enters optical fibers doped using rare-earth elements. Manufacturers typically use Erbium, Ytterbium, or Neodymium to dope these fibers. External pump diodes then inject massive amounts of electrical energy into the cable. The rare-earth ions absorb this energy and release identical photons. This rapidly amplifies the light into a powerful laser beam.
Business impact: This solid-state generation occurs entirely within a sealed cable. It completely protects the internal light source from shop floor dust, smoke, and ambient vibration. You gain incredibly high uptime. Your maintenance teams spend zero hours cleaning internal optics.
Once amplified, the light must reach the cutting area. It travels directly through a flexible, heavy-duty fiber optic cable. The cable connects the stationary power source to the moving cutting head.
Business impact: This simple delivery method eliminates complex optical pathways. Older CO2 systems required numerous fragile, water-cooled mirrors to bounce the beam across the gantry. Those mirrors demanded constant, maintenance-heavy realignments. Fiber delivery removes these mechanical failure points entirely. You secure reliable, consistent power delivery across the entire cutting bed.
The cutting head serves as the final delivery mechanism. Inside the head, collimating lenses straighten the diverging light beam. Focusing lenses then concentrate this beam into a microscopic pinpoint. This intense focal point instantly melts the metal upon contact.
Melting the metal represents only half the job. Coaxial assist gases flow through the cutting nozzle simultaneously. Operators typically use Nitrogen, Oxygen, or highly filtered Compressed Air. The gas pressure violently blows the molten metal out of the cut zone (the kerf).
Business impact: Your choice of assist gas directly dictates cut edge quality. For example, using high-pressure Nitrogen creates an oxide-free edge on stainless steel. This clean edge reduces secondary grinding and finishing costs down the line. Oxygen creates an exothermic reaction to speed up thick mild steel cutting, though it leaves an oxidized layer.
You must justify the technology shift when evaluating capital equipment. We must compare fiber lasers against legacy technologies using practical production outcomes.
Fiber lasers emit light at a 1.06 µm wavelength. This specific wavelength is ten times shorter than the beam produced by CO2 lasers. Metals absorb shorter wavelengths much more efficiently. This explains why fiber lasers easily cut highly reflective metals like copper, brass, and aluminum safely. If you try cutting polished copper using a CO2 laser, the metal reflects the beam backward. This back-reflection frequently destroys expensive internal CO2 components.
Power consumption models heavily favor solid-state tech. Fiber lasers draw significantly less electricity per watt of cutting power. The wall-plug efficiency of a fiber system reaches roughly 30%. In contrast, CO2 systems hover around 10% efficiency. This massive reduction in electrical draw lowers your monthly operational expenses drastically.
Throughput speed provides the fastest return on investment. Fiber lasers offer massive speed multipliers in thin-to-medium sheet metals. When cutting materials between 1mm and 6mm, fiber technology routinely outpaces plasma and waterjet systems by margins of 300% or more. The concentrated beam density allows the machine to fly through thin sheets seamlessly.
We must maintain transparent assumptions. Fiber lasers operate strictly as metal-cutting tools. The 1.06 µm wavelength passes right through clear acrylics. It simply burns wood and organic materials. They are not viable solutions for non-metals. Mixed-material fabrication shops require alternative technologies to handle plastics or composites.
| Feature | Fiber Laser | CO2 Laser | Plasma |
|---|---|---|---|
| Wavelength | 1.06 µm | 10.6 µm | N/A (Electrical Arc) |
| Energy Efficiency | ~30% | ~10% | Moderate |
| Reflective Metals (Copper/Brass) | Excellent | Poor / High Risk | Good (but poor edge) |
| Maintenance Downtime | Very Low | High | Moderate (Consumables) |
Decision-stage buyers need a concrete features-to-outcomes framework. You must evaluate internal components carefully to ensure the machine matches your specific production volume.
Buyers must differentiate between standard power (1kW–4kW) and ultra-high power (10kW–30kW+). High wattage translates directly to faster speeds and thicker piercing capabilities. However, excessive wattage bloats your capital expenditure.
Rule of thumb: Match your machine wattage to your 80th percentile material thickness. Do not base your purchase on your extreme, rare outliers. If you cut 3mm steel 80% of the time, a 4kW or 6kW system performs perfectly. You optimize your CapEx by outsourcing the rare 25mm plate jobs.
The laser beam moves only as accurately as the mechanical gantry driving it. You will encounter two primary drive systems: rack and pinion, and linear motors.
Evaluation logic: High-wattage lasers require faster motion systems. If you pair a 12kW laser source with a low-tier drive system, the machine cannot accelerate fast enough to utilize the laser's power. It will slow down at corners, causing intense heat buildup and compromised corner accuracy. Linear motors provide the rapid acceleration required to complement 10kW+ sources.
Modern cutting heads act as smart devices. Evaluate features carefully.
Outcome: These automated features reduce your dependency on highly skilled machine operators. They also prevent catastrophic head damage caused by operator errors.
Rolling out heavy machinery involves facility blind spots. You must prepare your building infrastructure long before the delivery truck arrives.
A new machine introduces massive electrical demands. You must upgrade facility electrical panels to handle the simultaneous draw of the laser source, the high-draw water chillers, and the fume exhaust systems. Failing to account for the chiller's amperage frequently delays installation by weeks.
Assist gas represents a massive hidden operational cost. Cutting with high-pressure nitrogen drains standard gas cylinders in hours. You must evaluate your supply logistics early. Options include renting bulk liquid nitrogen dewars, installing massive outdoor storage tanks, or investing in on-site nitrogen generators. A generator demands higher upfront CapEx but stabilizes your monthly gas expenses.

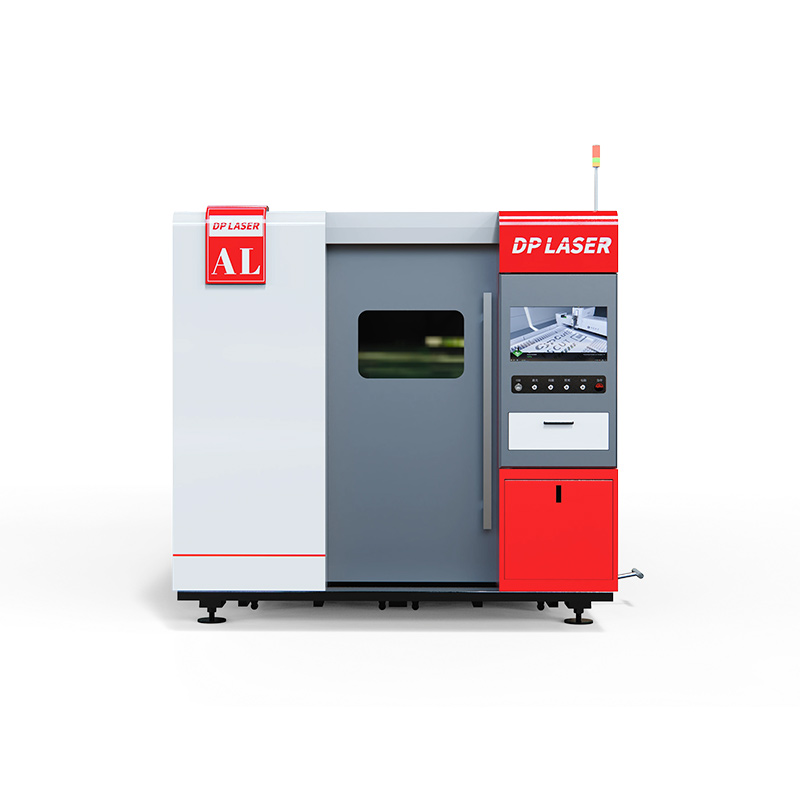

The 1.06 µm wavelength poses extreme danger to the human retina. Even scattered reflections can cause instant blindness. Therefore, Class 1 enclosure requirements are mandatory. You cannot operate open-bed fiber lasers safely without specialized safety glass and interlocked doors.
Furthermore, vaporized metal creates hazardous fumes. OSHA and local environmental regulations strictly govern metallic dust. You must implement compliant fume extraction and dust collection systems. Proper filtration prevents respiratory hazards and avoids steep compliance fines.
Selecting the right fiber laser cutting machine manufacturer reduces post-purchase risk. You are entering a long-term partnership.
Ask vendors about component origins. Do they manufacture their own laser source? Do they integrate reputable third-party sources like IPG, Raycus, or nLIGHT? Both approaches are perfectly valid. However, transparency is key. You need to know exactly whose warranty covers the core power source.
The hardware is useless without efficient software. Evaluate their proprietary nesting software. Good nesting minimizes raw material scrap. Ask if their software integrates cleanly into your existing CAD/CAM programs and ERP systems. Seamless digital handoffs prevent production bottlenecks.
A machine sitting idle represents lost revenue. Assess their domestic parts availability. Determine their guaranteed technician dispatch times. Ask about their remote diagnostics capabilities. The best vendors can log into your machine remotely to clear software faults in minutes, saving you a costly service visit.
Never accept generic manufacturer benchmark speeds. Demand a physical demonstration. Require a test cut using your specific material files (DXF formats). Grade the results based on true cycle time and cut edge quality. This proves the machine handles your real-world geometric complexities.
Buying a fiber laser goes far beyond acquiring a new tool. It represents a fundamental upgrade to the speed and capacity of your entire production line. By understanding how the active fiber generates light and how the cutting head delivers it, you gain the knowledge to evaluate vendors effectively. You can now match drive systems, wattage, and software ecosystems precisely to your operational needs.
As an immediate next step, conduct a detailed time-study on your five most common parts. Calculate your daily volumes, average material thicknesses, and secondary finishing times. Use this data to determine the exact wattage and assist-gas configuration you require before requesting any formal quotes. This ensures you buy exactly what you need to scale profitably.
A: Cutting capacity scales directly with wattage. A standard 4kW fiber laser comfortably cuts mild steel up to 20mm and stainless steel up to 10mm. If you routinely process heavy plates exceeding 25mm, you will require ultra-high power systems ranging from 12kW to 20kW+.
A: Modern fiber lasers are highly software-driven. Automated features like auto-focus, automatic nozzle cleaning, and smart collision detection significantly reduce manual setup. While operators need basic digital literacy to navigate the control panel, they do not require the deep mechanical expertise previously needed to tune older laser systems.
A: Industry standards project the lifespan of solid-state laser diodes at roughly 100,000 operational hours. Achieving this longevity depends entirely on strict facility maintenance. You must maintain proper water chiller temperatures and ensure your assist gases remain free of moisture and oil contaminants.
A: While standard flatbed machines process only sheet metal, you can process tubes using specialized equipment. Many manufacturers offer rotary axis attachments for flatbed models. Alternatively, you can purchase dedicated tube laser cutting machines designed exclusively for processing round, square, and complex extruded profiles.
