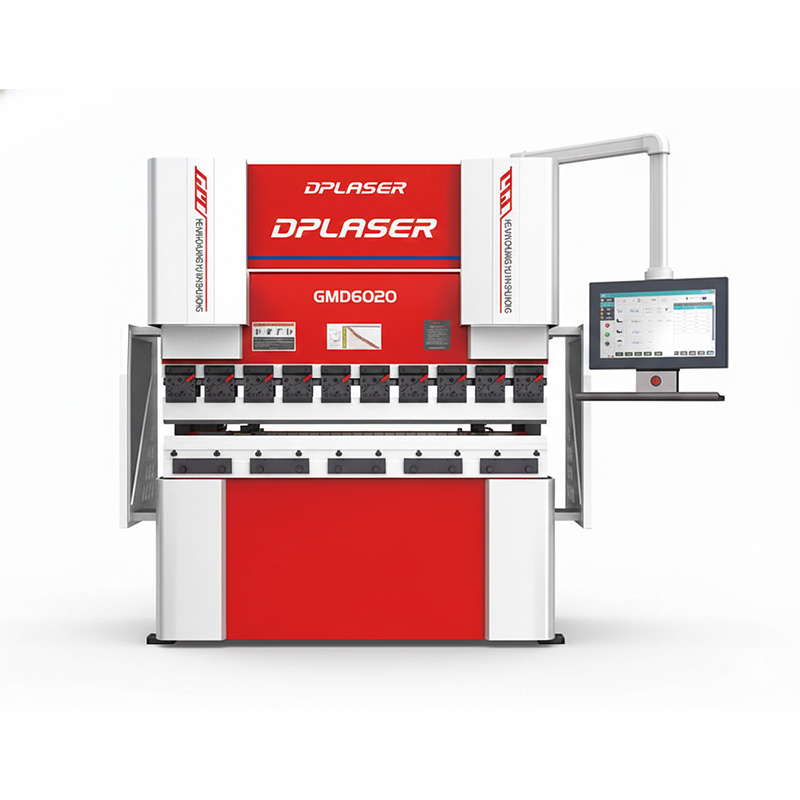

The DP-MG Series All-Electric Servo Bending Machine redefines sheet metal processing with its pure servo motor drive system. Unlike traditional hydraulic bending machines, this eco-friendly equipment eliminates the need for hydraulic oil, reducing energy consumption by 80% while delivering superior efficiency and precision. With fast slider speeds, high bending accuracy (angle error within ±0.5mm), and multi-axis control, the DP-MG series caters to a wide range of applications—from small precision parts to large sheet metal components. Its streamlined design minimizes wear parts, ensuring low maintenance and long-term reliability for industries worldwide.
Advanced multi-axis control (4–6 axes) ensures reliable positioning accuracy and consistent bending performance, critical for precision sheet metal work in automotive, medical, and aerospace industries.
All-electric design cuts out hydraulic oil-related costs and pollution. Saves up to 80% energy compared to traditional hydraulic models, aligning with green manufacturing goals.
Swift movement of key components (pressure board speed up to 260mm/s) shortens processing cycles, boosting productivity and meeting high-volume production demands.
Simplified all-electric structure reduces wear parts, lowering long-term upkeep costs and downtime. Robust build quality ensures stable operation even in 24/7 production environments.
Available in four models (DP-GM8025, DP-GM6020, DP-GM4020, DP-GM3013) to handle both small precision parts and large sheet metal components across diverse industries.
Name | DP-GM8025 | DP-GM6020 | DP-GM4020 | DP-GM3013 |
Nominal Pressure | 80ton | 60ton | 40ton | 30ton |
Length of Workbench | 2500mm | 2000mm | 1300mm | 600mm |
Height of Workbench | 940mm | 900mm | 900mm | 700mm |
Height of the Opening | 460mm | 460mm | 460mm | 460mm |
Throat Depth | 410mm | 410mm | 400mm | 300mm |
Travel Distance of the Pressure Board | 150mm | 150mm | 150mm | 150mm |
Back-and-forth Movement Range of the Rear-fixing Device | 500mm | 500mm | 500mm | 500mm |
Rising/Falling Speed of the Pressure Board | 200mm/s | 220mm/s | 230mm/s | 260mm/s |
Pressing Speed of the Pressure Board | 30mm/s | 30mm/s | 30mm/s | 30mm/s |
Back-and-forth Moving Speed of the Rear-fixing Device | 300mm/s | 300mm/s | 300mm/s | 300mm/s |
Number of Machine Axes | 6axis | 6axis | 6axis | 4axis |
Total Power Capacity | 45KVA | 37KVA | 23KVA | 19KVA |
Main Motor Power | 25KW×2 | 18.5KW×2 | 11KW×2 | 7.5KW×2 |
Weight of Equipment | 7300kg | 5000kg | 3500kg | 2600kg |
Machine Dimension (L/W/H) | 2700*1650*3300mm | 2200*1500*2950mm | 1500*1450*2400mm | 800*1350*2100mm |
Gross Power | 52KW | 29KW | 22KW | 15KW |
Ideal for bending precision sheet metal parts for cabinets, enclosures, and structural components.
Processes sheet metal for refrigerators, stoves, sinks, and other household appliances, ensuring consistent bending angles.
Produces precision components for car bodies, batteries, and electric vehicle parts, meeting strict industry standards.
Bends high-precision sheet metal for medical equipment (e.g., surgical tools) and aerospace components, where accuracy is non-negotiable.
Handles large-scale sheet metal for elevator cabins, building facades, and decorative elements.
Laser engraving of brand logos and Pantone color matching on equipment shells, enhancing brand visibility.
Development of custom process modules based on specific sheet metal requirements—material thickness, bending angle range, and production speed must be provided.
Multi-language UI (German, Spanish, Italian, etc.) and PLC reprogramming to fit regional operational workflows.
Production Bases: Manufactured at Nantong (90-acre high-power laser cutter facility) and Dongguan (40,000㎡ precision laser equipment factory) with virtual tours available within 72 hours.
Capacity Stability: Monthly output of 80+ laser cutters (expandable by 30%) and 120+ laser welders, with annual production capacity of 20,000+ units.
Training Support: Lifetime free online technical training. On-site training at domestic centers post-installation and commissioning.
Operation & Safety: Detailed downloadable PDF manual. Safety guidelines include protective gear use and overload prevention.
Capabilities vary by model—ranges from thin precision sheets to thicker materials (contact sales for specific model details based on your needs).
No—all-electric design eliminates hydraulic oil, so no oil changes or leakage risks.
Custom orders take 25–30 days, 30% faster than the industry average, with global logistics and installation support included.
