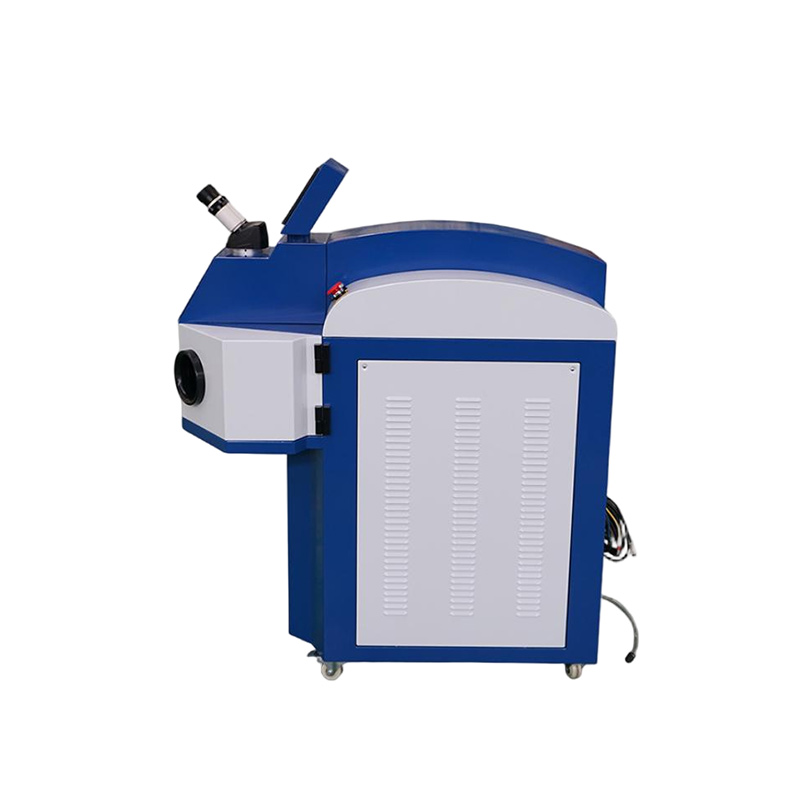

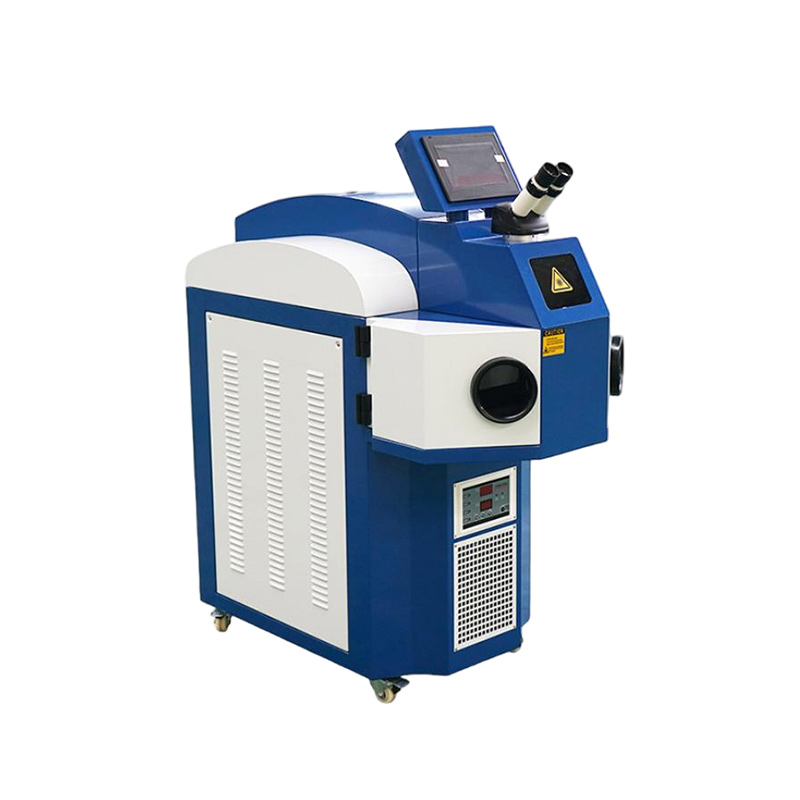

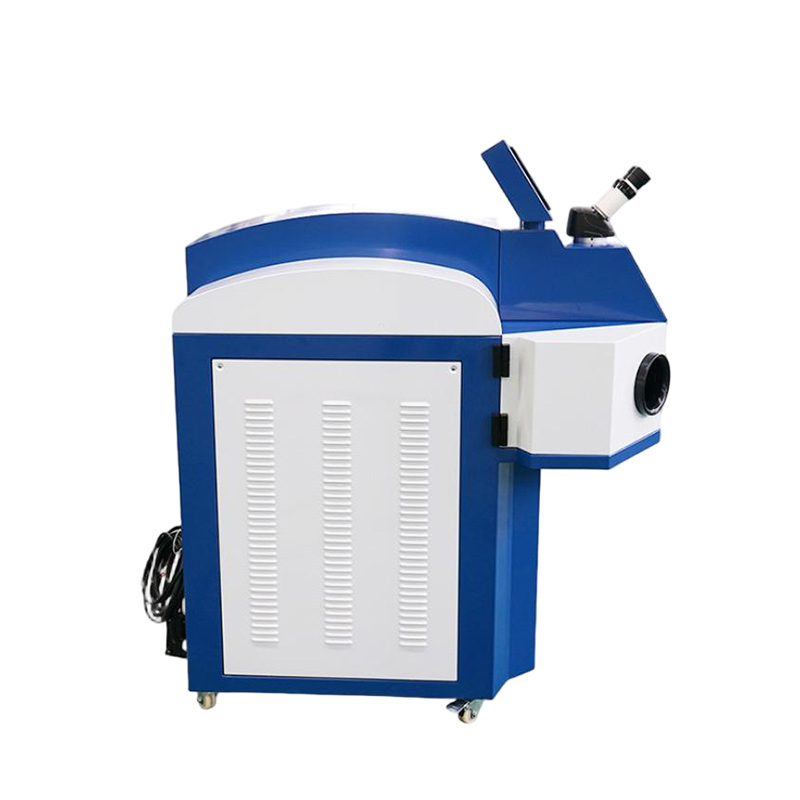

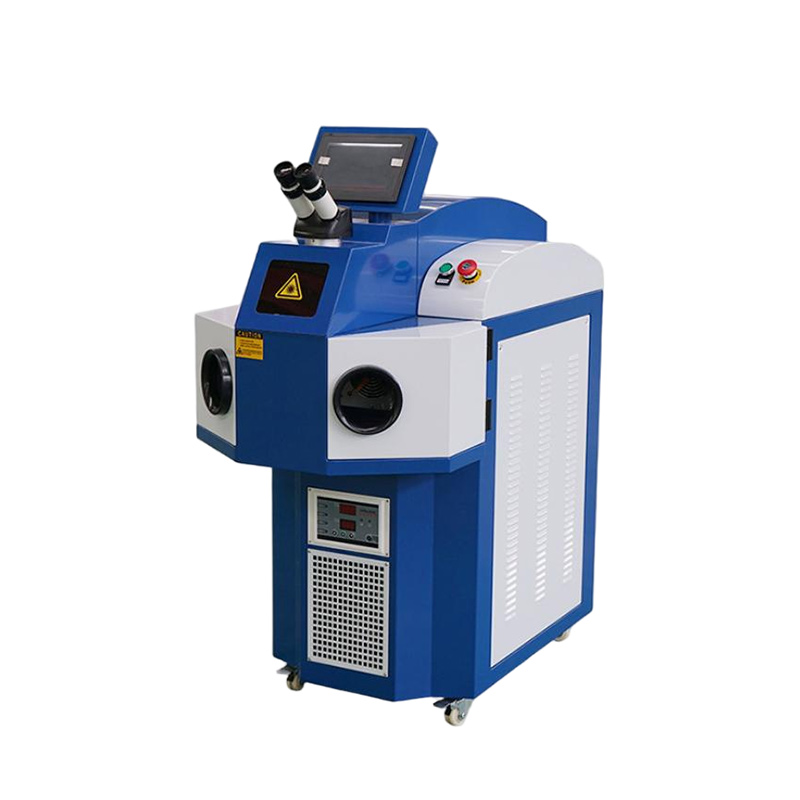

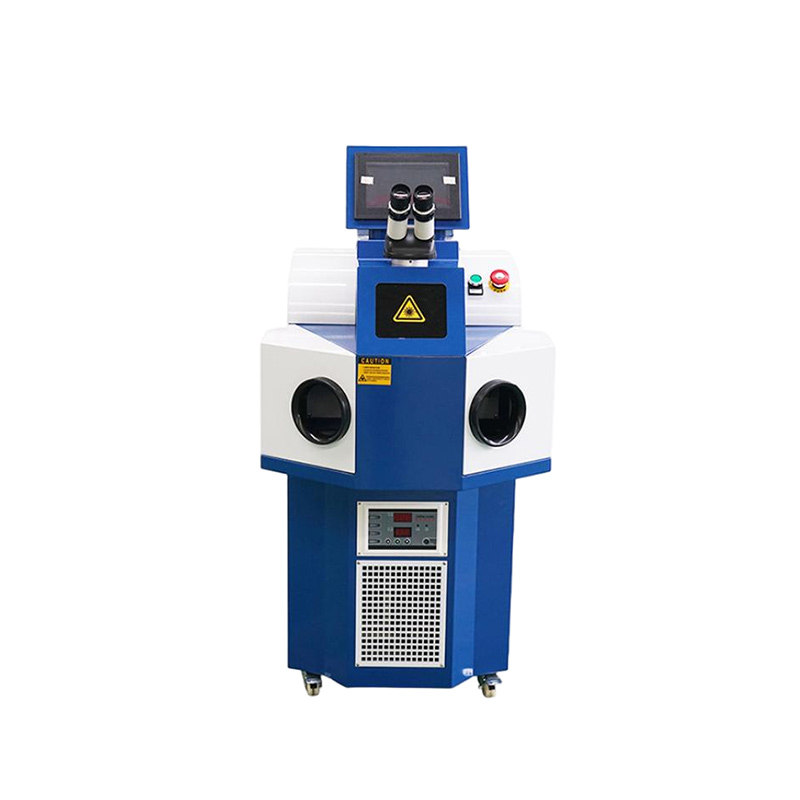

The DPH-SS Series Jewelry Laser Welding Machine is a cutting-edge precision tool engineered for the jewelry manufacturing and repair industry. Adopting advanced Nd:YAG pulsed laser technology (1064nm wavelength) with maximum power options of 150W and 200W, this machine integrates imported ceramic focusing cavities, dedicated cooling systems, and high-precision microscope & CCD positioning systems. It is specifically designed for micro-welding tasks, enabling seamless welding, hole-filling, and spot-welding of precious metals and alloys. With adjustable parameters (pulse width, frequency, spot size), the DPH-SS series ensures minimal deformation, high weld strength, and eco-friendly operation—making it an indispensable asset for jewelry artisans and manufacturers.
Equipped with 150W/200W water-cooled/air-cooled Nd:YAG lasers, the machine delivers efficient spot soldering for gold, platinum, and silver jewelry. The minimal heat-affected zone (HAZ) eliminates deformation, preserving the original shape and luster of delicate pieces.
The integrated micro-positioning system (microscope + CCD camera) allows for accurate targeting of pinholes, loose claws, and sand holes. Weld strength is close to the base material, ensuring durable and invisible repairs.
Available in desktop and industrial models, the machine caters to diverse production needs. Imported core components guarantee a long lifespan, while factory warranty coverage provides peace of mind for long-term use.
Without the need for harmful chemicals or excessive energy consumption, the machine operates sustainably. Its high efficiency reduces production time, lowering overall manufacturing costs.
Parameter | DPH-SS-200W-LS | DPH-SS-150W-ZM |
Maximum laser power | 200W | 150W |
Laser wavelength | 1064nm | 1064nm |
Focusing cavity reflector | Imported ceramic focusing cavity | Imported ceramic focusing cavity |
Laser frequency | 1-25Hz | 1-20Hz |
Pulse width | 0.2-10Ms | 0.2-10Ms |
Spot adjustment range | 0.2-3mm | 0.2-2mm |
Aiming and positioning | Microscope, camera system | Microscope, camera system |
Cooling power of chiller | Water Cooling | Air Cooling |
Rated power | 7KW | 5KW |
Electricity demand | 220V±5V 50Hz/60 A | 220V±5V 50Hz/60A |
External dimensions | Host：360×550×1170mm | Host：800×500×620mm |
Ideal for seamless welding and repair of gold/silver necklaces, rings, bracelets, and earrings. Spot-welding of tiny accessories (e.g., charms, clasps) without damaging the base material.
Welds titanium alloy, stainless steel jewelry, and precision castings—including inlay work and prong fixing. No oxidation or discoloration, ensuring consistent quality.
Targets and fixes holes, sand holes, and loose components via precise micro-welds, restoring jewelry to its original condition.
Supports micro-welding of custom connectors and complex structures, enabling the production of unique, high-quality jewelry pieces.
Laser engraving on the equipment shell, including Pantone color matching and vector LOGO etching, to align with brand identity.
Development of custom process modules tailored to specific industry needs—requires provision of material type, thickness range, and processing speed requirements.
Multi-language UI (German, Spanish, French, etc.) and PLC reprogramming to adapt to global operational needs.
Production Capabilities: Manufactured at two state-of-the-art bases—Nantong (90-acre facility for high-power laser equipment) and Dongguan (40,000㎡ export-grade precision laser lab).
Capacity Assurance: Monthly output of 120+ laser welders, expandable by 50% during peak seasons with 7-day notice. Over 25,000 units delivered in 13 years.
Training & Maintenance: Lifetime complimentary online technical training. On-site training sessions at domestic centers until operational proficiency is achieved.
Warranty: Factory warranty on core components, ensuring reliable performance and support.
It efficiently welds gold, silver, platinum, titanium alloy, and stainless steel—perfect for jewelry manufacturing and repair.
Standard models have a delivery time of 15–20 working days, including optical calibration and test reports.
Yes, global logistics include 25-day sea freight, destination customs clearance, and on-site installation support.
