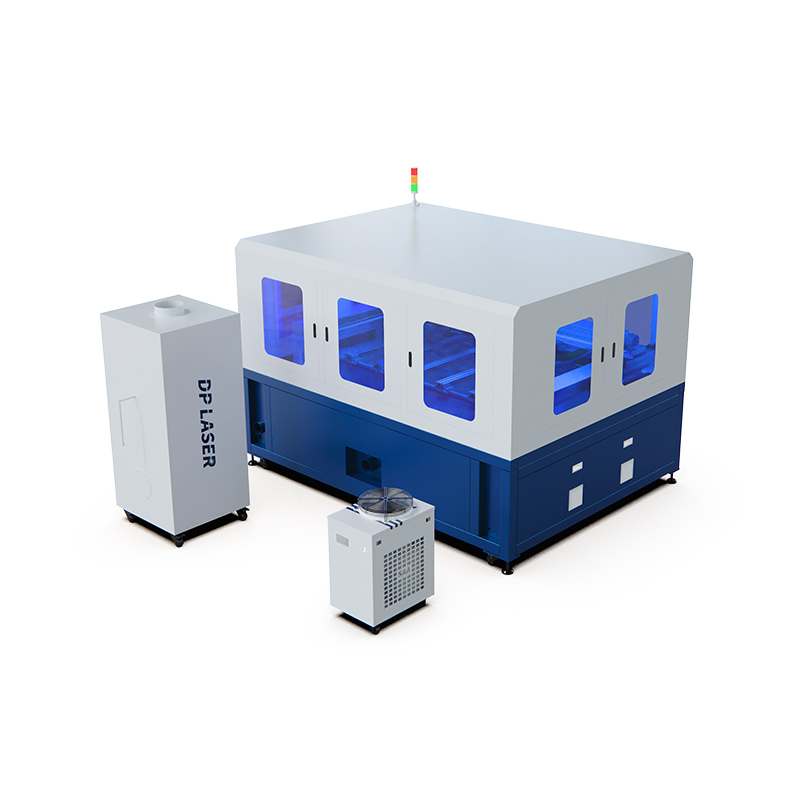

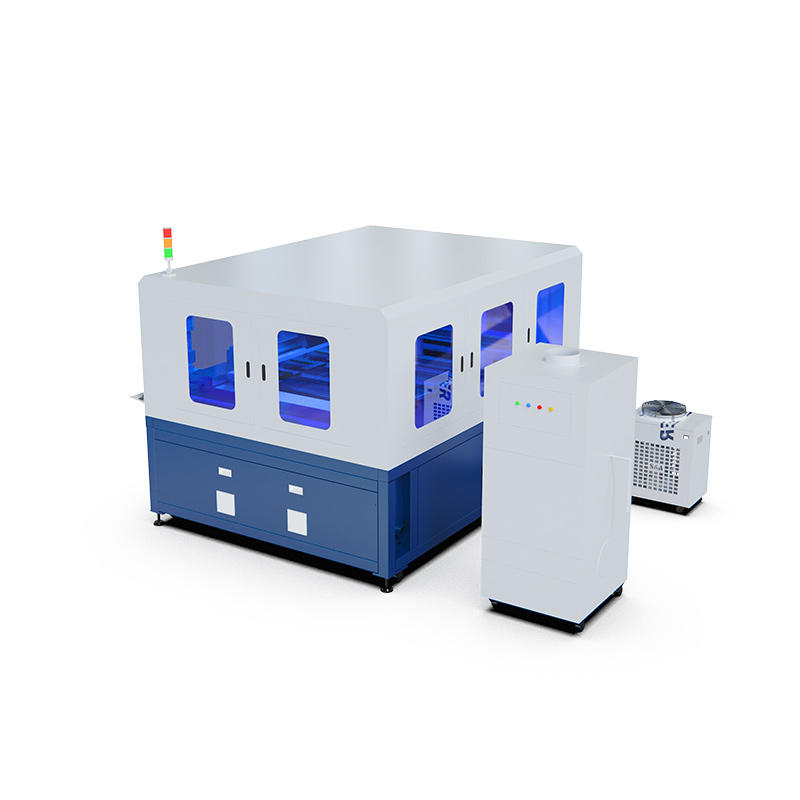

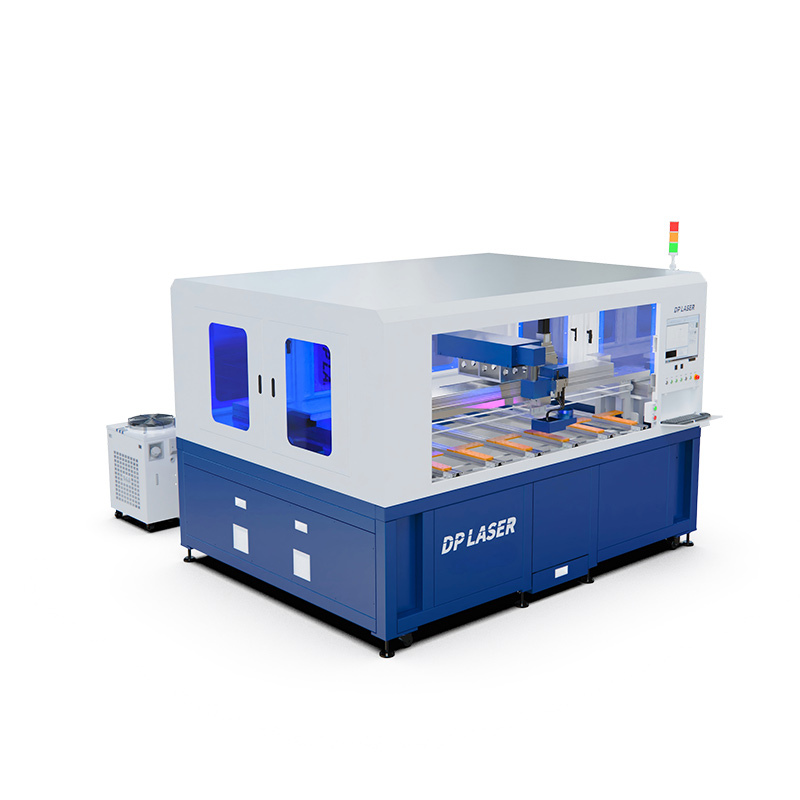

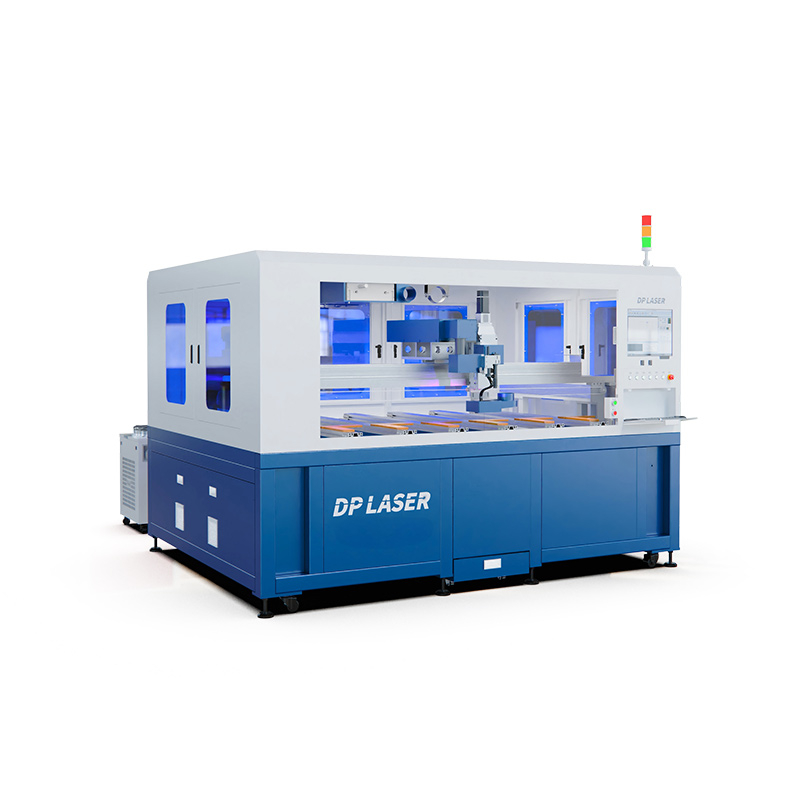

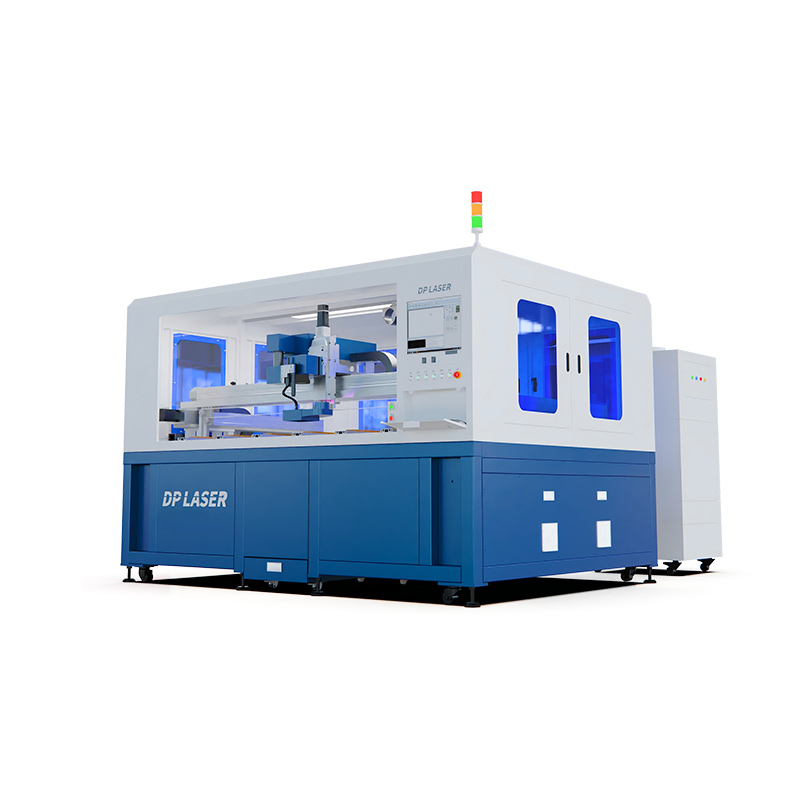

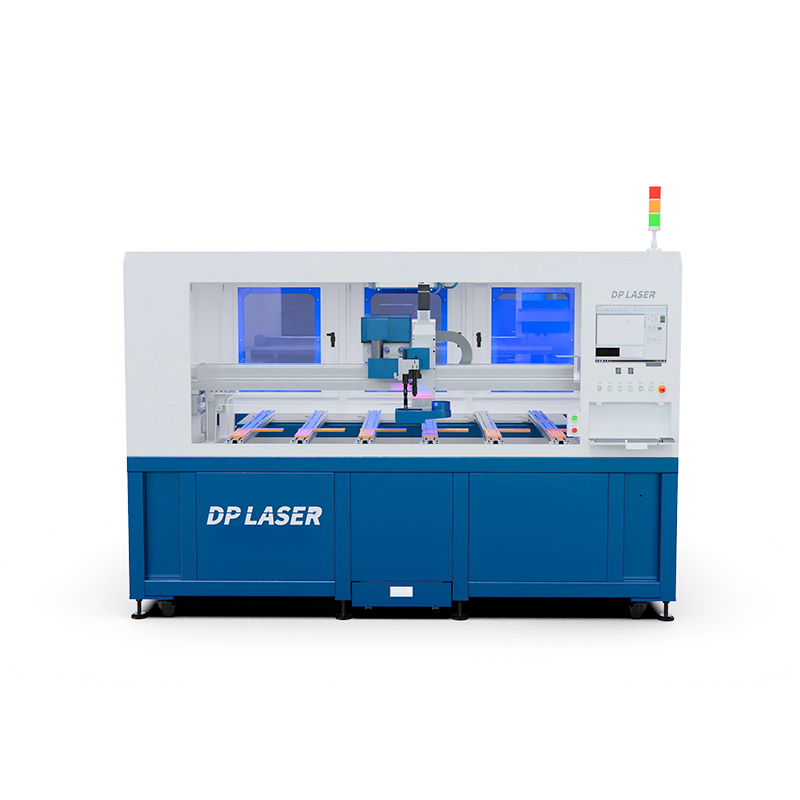

The DPG-SPQL Series Dual-station Picosecond Laser Cutting Integrated Machine is a cutting-edge solution for ultra-precision non-contact processing, integrating picosecond/nanosecond laser technology with dual-station efficiency. Designed primarily for glass and high-precision components, it achieves cutting (≤8mm ultra-clear glass) and drilling (inner diameter ≤100mm) with XY-axis positioning accuracy up to ±3μm. Equipped with Bessel multi-point focusing and a 3D scanning galvanometer, it enables free-shape processing without tool changes—delivering smooth edges (edge chipping ≤0.3mm) and zero consumables. Ideal for electronics, medical, automotive, and photovoltaic industries, this machine balances speed, precision, and sustainability.
Adopting cold cutting technology, the machine avoids thermal damage to materials, ensuring smooth, burr-free edges and consistent dimensional accuracy. With processing precision of ±3μm (for premium models), it meets the strict requirements of high-end glass components in electronics and medical devices.
The alternating dual-station design allows for non-stop processing—one station handles cutting while the other loads/unloads workpieces. This significantly boosts efficiency, reduces idle time, and balances speed (50~400mm/s) with stability for large-batch production.
Compatible with multi-thickness (1-8mm) and multi-shape glass, the machine adapts to diverse applications from electronic displays to medical vials. It operates at 5KW/H low power and requires no consumables, cutting operational costs by 50% compared to traditional cutting methods.
Equipped with precision positioning components and a vacuum fixation system, the machine ensures stable long-term operation and prevents workpiece displacement. Its dust-free processing meets environmental standards, eliminating harmful emissions and supporting green manufacturing.
Serial No. | Item | DPG-SPQL-I | DPG-SPQL-II | DPG-SPQL-III | DPG-SPQL-IV |
1 | Infrared Picosecond Laser | 60W 1.4mJ | 60W 2mJ | 70W 1.4mJ | 60W 2mJ |
2 | CO₂ Laser | 150W (Standard) | 150W (Standard) | 150W (Standard) | 150W (Standard) |
3 | Linear Motor | Iron-Cored | Iron-Cored | Ironless | Ironless |
4 | Working Stroke | 700mm×800mm×2 | 700mm×800mm×2 | 700mm×800mm×2 | 700mm×800mm×2 |
5 | Cutting Speed | 50~400mm/s | 50~400mm/s | 50~400mm/s | 50~400mm/s |
6 | Processing Accuracy | ±5μm | ±5μm | ±3μm | ±3μm |
7 | Cutting Circularity | ±5μm | ±5μm | ±3μm | ±3μm |
8 | CCD Positioning | Optional | Optional | Standard | Standard |
9 | Flying Cut & Cleave | Standard | Standard | Standard | Standard |
10 | Cutting Thickness | 1-5MM | 1-8MM | 1-5MM | 1-8MM |
The dual-station picosecond laser cutting machine is a core tool for:
Electronics Industry: Cutting glass for displays, touchscreens, and semiconductor components.
Automotive Sector: Processing automotive windshields, mirrors, and sensor glass.
Medical Industry: Fabricating precision glass vials, syringes, and medical device components.
Photovoltaic Industry: Cutting glass substrates for solar panels.
Architectural Field: Custom-shaped glass for windows, curtain walls, and decorative elements.
Enhance brand recognition with custom laser engraving on equipment shells—we support Pantone color matching and vector LOGO etching for a cohesive brand image.
We develop tailored process modules based on your specific needs, including material type (specialty glass), thickness range, and cutting speed requirements. This ensures the machine aligns with your unique production workflow.
Multi-language UI (German, Spanish, etc.) and PLC reprogramming are available to adapt to regional operational standards and team preferences.
Production Excellence: Our Nantong (90-acre high-power laser facility) and Dongguan (40,000㎡ precision equipment factory) bases guarantee high-quality manufacturing. Virtual tours are available within 72 hours.
Capacity Stability: Over 25,000 units delivered in 13 years; monthly output of 80+ laser cutters and 120+ laser welders (expandable for peak demand).
Comprehensive Training: Lifetime complimentary online training + on-site technical sessions to ensure your team masters operation and maintenance.
Reliable Delivery: Standard models ship in 15–20 working days (including optical calibration and test reports); custom orders in 25–30 days. Global logistics includes 25-day sea freight, customs clearance, and on-site installation.
Yes. We offer paid samples (cost deductible from bulk orders) with detailed test reports, including cutting accuracy, edge chipping data, and material integrity analysis.
Absolutely. The dual-station design is flexible for both small-batch customization and large-batch production. Its quick parameter setup and tool-free processing save time for small runs.
We offer lifetime online technical support, regular maintenance guides, and on-site troubleshooting if needed. Our team responds to inquiries within 24 hours to minimize production downtime.
